290,85 €

ROG STRIX Z790-H GAMING WIFI Strike stealthily with the powerfully potent ROG Strix Z790-H. Thick black heatsinks keep VRM temperatures under wraps, allowing Intel® 13th Gen processors room for higher boosts. Four M.2 slots are similarly outfitted, and the top slot comes with a combo sink to sneak in extra cooling. PCIe 5.0 support lies…

Out of stock

Description

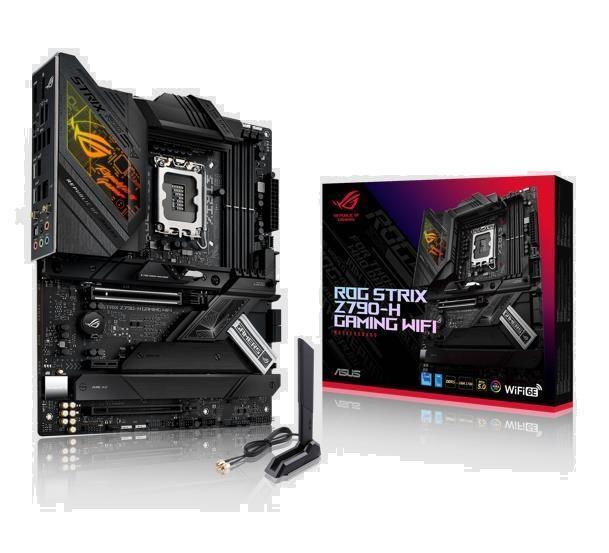

ROG STRIX Z790-H GAMING WIFI

Strike stealthily with the powerfully potent ROG Strix Z790-H. Thick black heatsinks keep VRM temperatures under wraps, allowing Intel® 13th Gen processors room for higher boosts. Four M.2 slots are similarly outfitted, and the top slot comes with a combo sink to sneak in extra cooling. PCIe 5.0 support lies in wait for next-gen graphics cards, and cutting-edge WiFi 6E and USB 3.2 Gen 2×2 fully flesh out connectivity.

Additional information

Model	STRIX Z790-H GAMING WIFI
Chipset	Intel Z790
Socket	LGA1700
Form Factor	ATX
Memory type	DDR5
Frequency speed	6400/7400/6000/6600/7800/7000/6200/4800/7200/5800/7600/5000/6800/5600/5400/5200 MHz
Memory slots	4
PCI-Express 3.0 1x	1
M.2	4
PCI-Express 5.0 16x	1
PCI-Express 4.0 16x	1

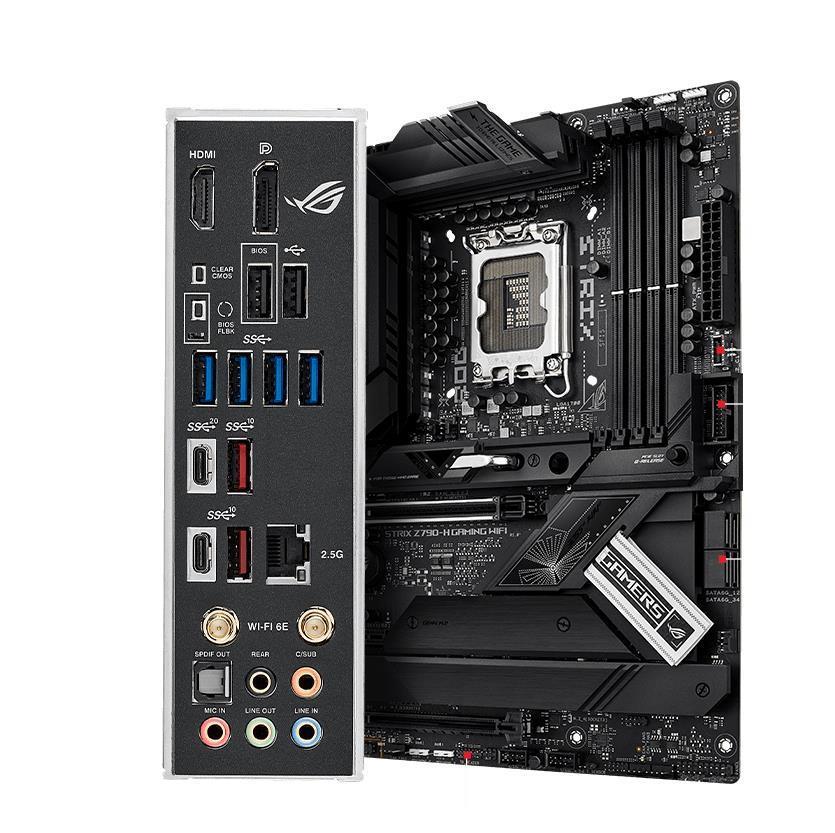

USB-C	2
USB 3.2	Yes
RJ45	1
DisplayPort	1
Optical S/PDIF	1
USB 2.0	2
Audio port	5
HDMI	1
SATA	Yes
WiFi	Yes
Bluetooth	Yes
Integrated video	Depending on CPU
Integrated LAN	2.5 Gigabit
Integrated audio	Yes
RAID	SATA 0, 1, 5, 10
Included Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x M.2 anchor Documentation 1 x Quick start guide
Unit Box Width	0.27
Unit Box Length	0.35
Unit Box Height	0.07
Bränd	ASUS

Mainboard|ASUS|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|STRIXZ790-HGAMINGWIFI
