Description

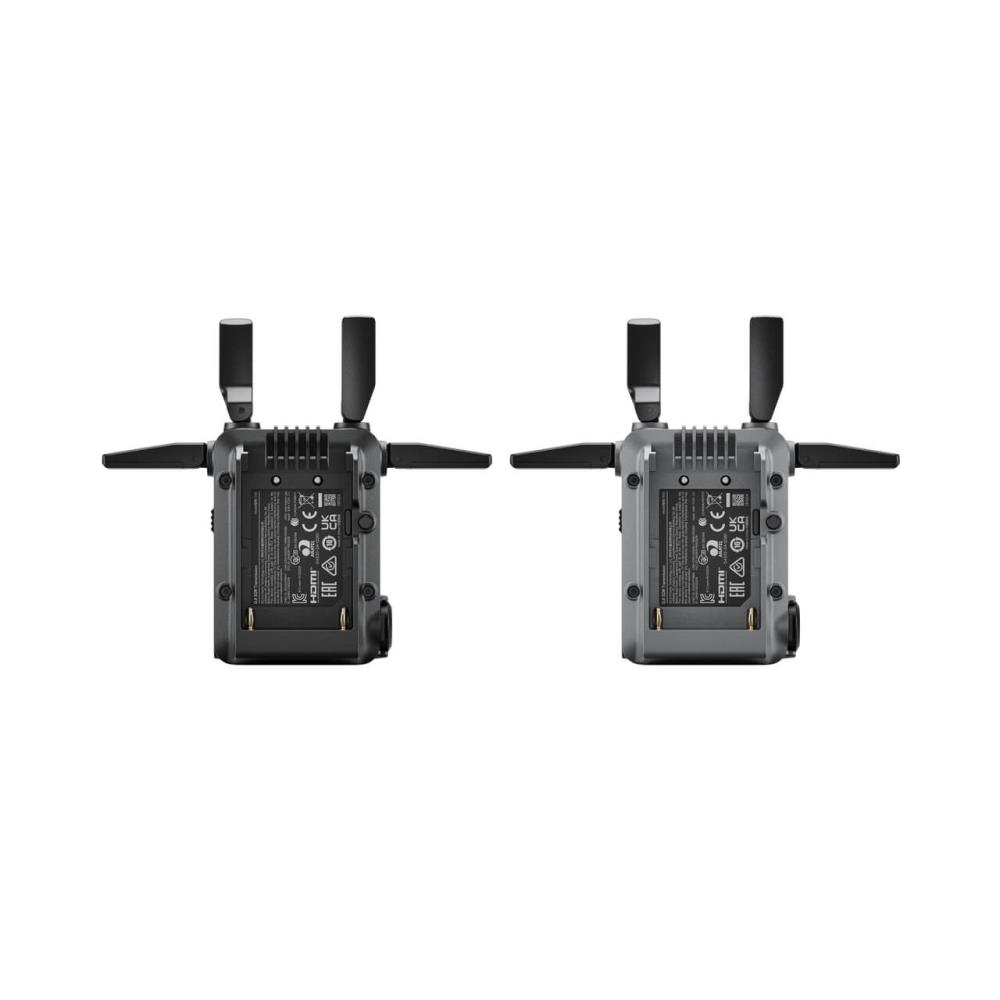

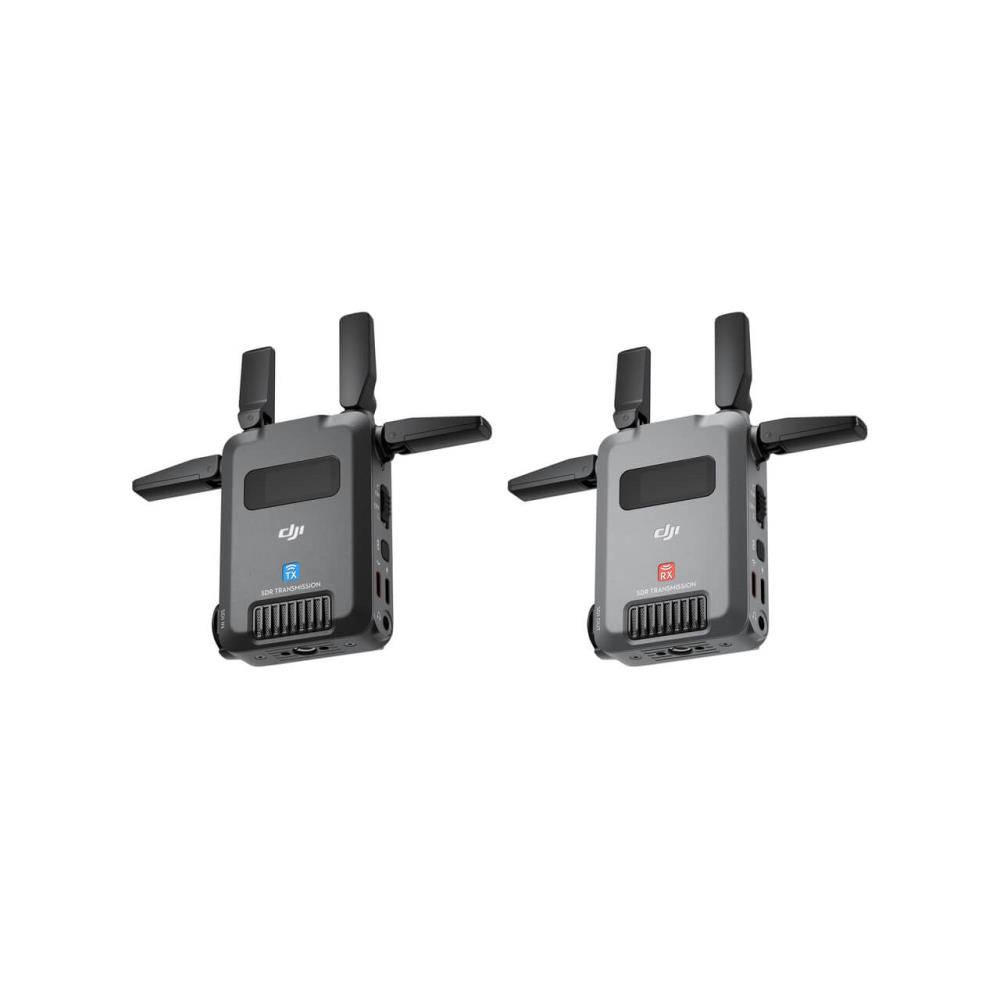

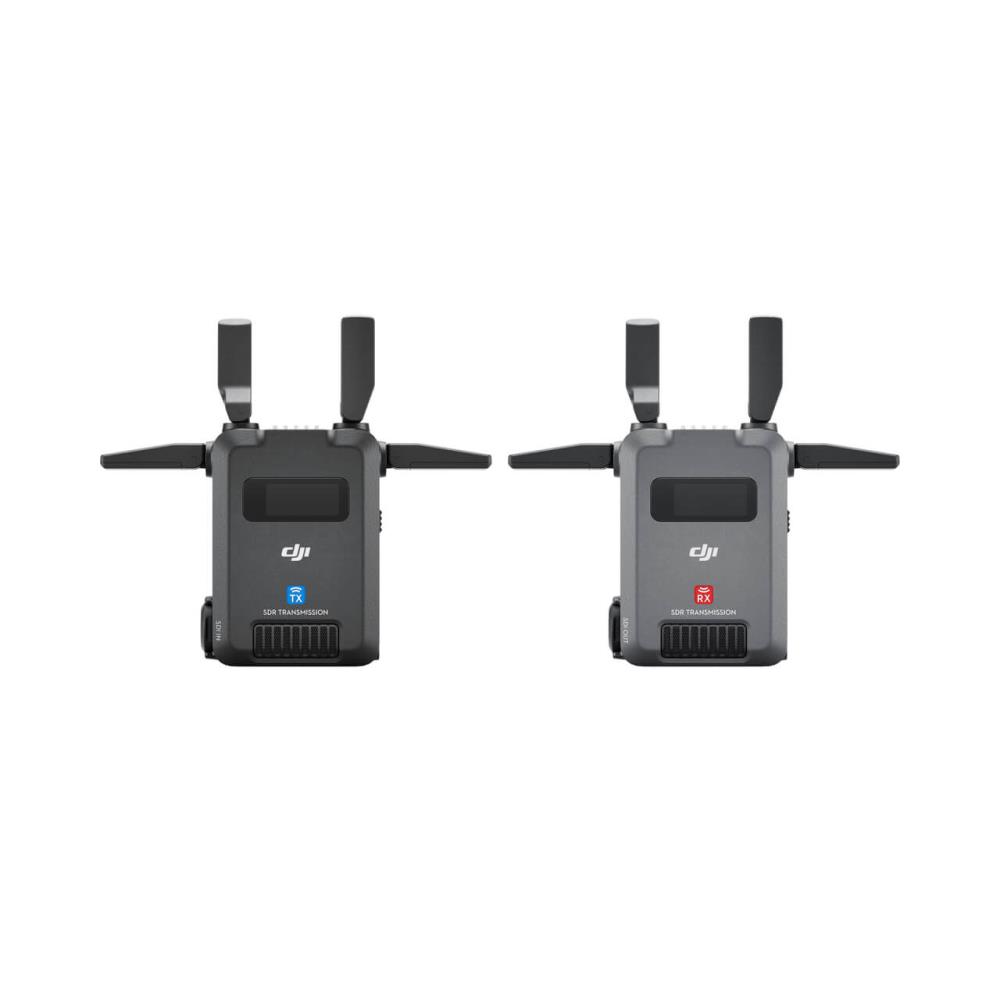

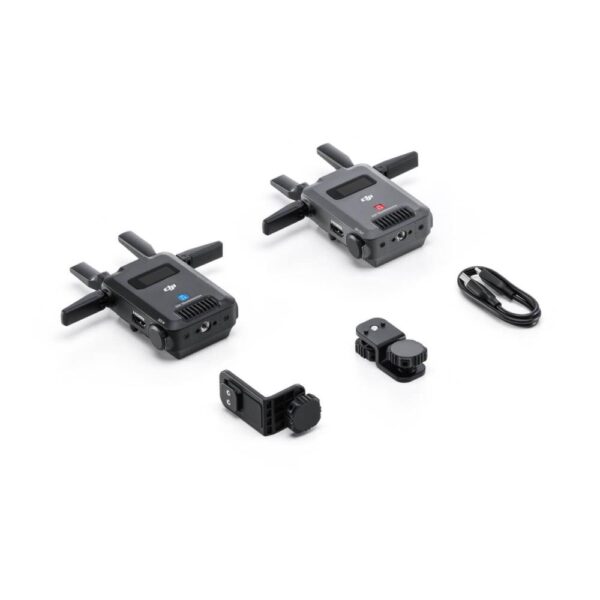

DJI SDR Transmission Combo

No delays, no interruptions

Discover the power of DJI's SDR Transmission System, stable and resistant to any interference. This advanced technology utilizes both SDR (or Software-Defined Radio) and Wi-Fi video transmission modes to help your video feed remain clear and uninterrupted.

DJI SDR Transmission Features

– SDI and HDMI for video, 3.5mm jack for audio, and USB-C for power and data

– SDR: 2.4000-2.4835 GHz, 5.725-5.850 GHz, and 5.470-5.725 GHz (DFS)

– Wi-Fi Protocol Supports 802.11b/a/g/n/ac/ax with 2×2 MIMO capability

– Maximum Bandwidth 20 MHz for both SDR and Wi-Fi

– Maximum Bitrate 20 Mbps for SDR and 8 Mbps for Wi-Fi

– Power Consumption 8.2W to 8.3W

– Power Supply: Multiple USB-C options and NP-F battery support

– Video Formats: Supports 1080p, 1080i, and 720p across various frame rates

– Audio Formats: SDI and HDMI embedded audio, with PCM output

– Maximum Transmission Distance Up to 3 km for SDR and 200 m for Wi-Fi
