Description

– 7″ capacitive glass touchscreen with swipe gestures support

– 1024×600 screen resolution, 16.7 million colours (true colour)

– multi-level user customisable graphic interface

– up to 24 user screens

– customisable and adaptable interface screens

– more than 20 preset graphic themes

– custom themes support

– widgets for keypad operation, control of the alarm system and automation devices connected to the control panel

– system control via MACRO functions, which activate an entire chain of different commands (including building automation commands)

– quick activation of PANIC, FIRE, AND MEDICAL alarms

– integration with the INTEGRA (INTEGRA Firmware 1.20 or higher), VERSA (VERSA Firmware 1.10 or higher) and PERFECTA 64 M control panels

– screensaver with options to display clock, date, system component statuses (zones, doors, exits), and temperatures (INTEGRA, INTEGRA Plus, PERFECTA 64 M)

– option to display a slideshow (photo frame function)

– current system status notifications displayed on the taskbar

– built-in MIFARE® proximity card reader (13.56 MHz) (supported by INTEGRA and INTEGRA Plus control panels only):

– Ultralight CSN/SSN

– Classic CSN/SSN/MSN

– DESFire (EV1 / EV2 / EV3) CSN/MSN

– 2 programmable hardwired zones (INTEGRA and INTEGRA Plus only)

– support for NO and NC type detectors, as well as roller shutter and vibration detectors;

– support for EOL, 2EOL and 3EOL configuration (3EOL in with the INTEGRA Plus only);

– programming of end-of-line resistor values

– built-in speaker for acoustic signalling

– adjustment of acoustic signalling volume

– adjustable screen brightness with day/night mode

– built-in microSD memory card slot (for storing photo frame pictures, additional screen wallpapers and custom sounds for audible signals of zone violations – chimes)

– tamper contact responding to the enclosure opening or detaching from the wall

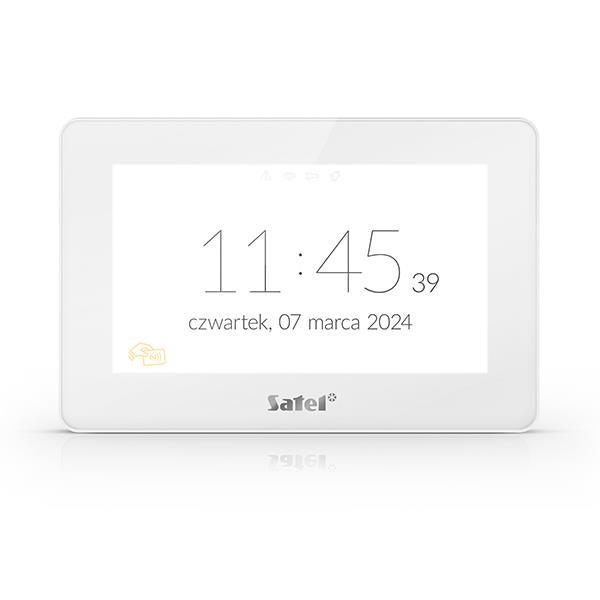

– available in white (INT-TSH2R-W) and black (INT-TSH2R-B) enclosure
