ASRock Intel B860 LGA 1851 (Socket V1) ATX — emaplaat

170,03

1st M.2 highest PCI Express generation: 5.0 · 1st M.2 largest key size: 2280 · 2nd M.2 highest PCI Express generation: 4.0

Otsas — tarneaeg täpsustamisel, küsi pakkumist

Laost otsas

Tootekood: 1460776 Kategooria:

Kirjeldus

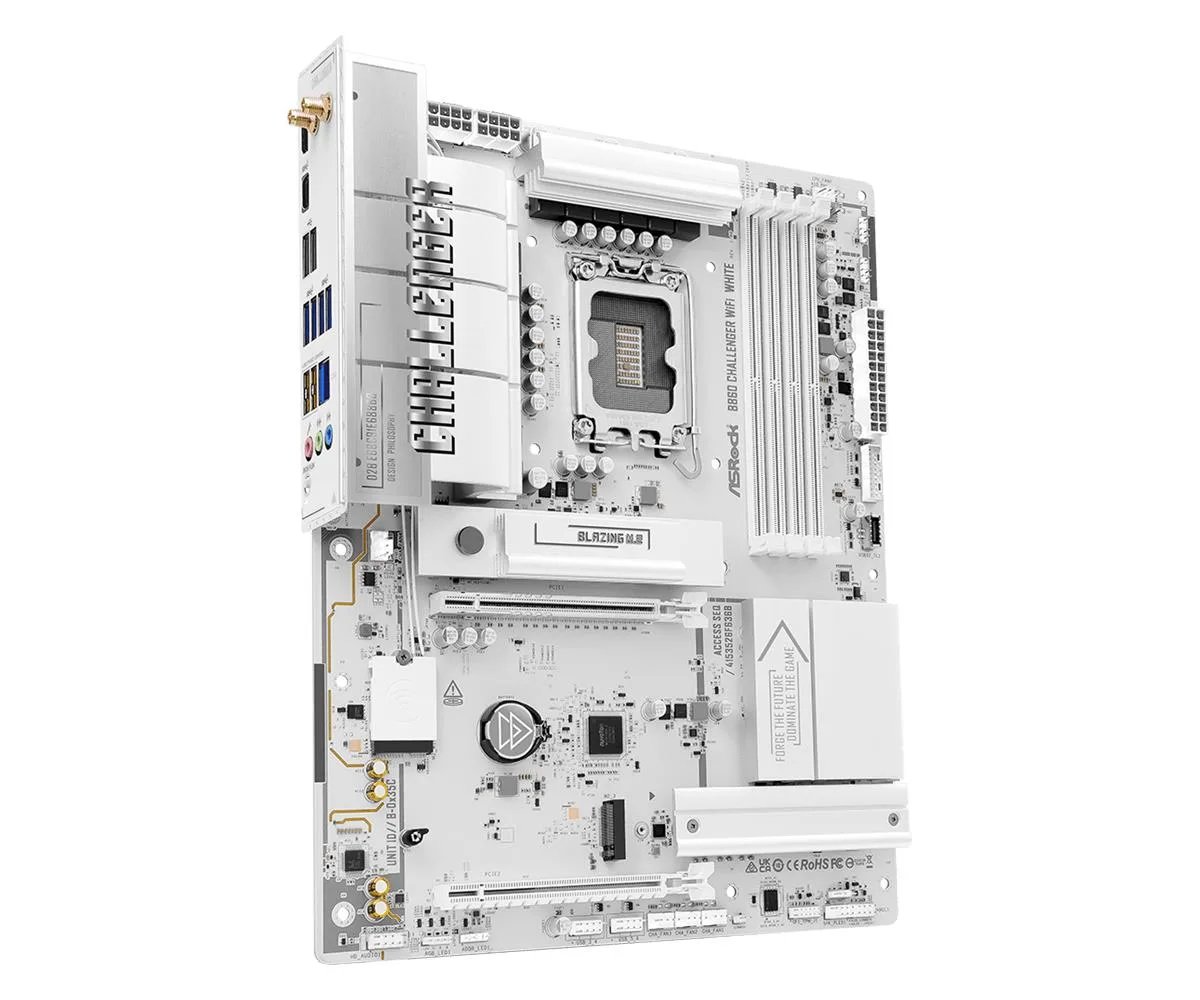

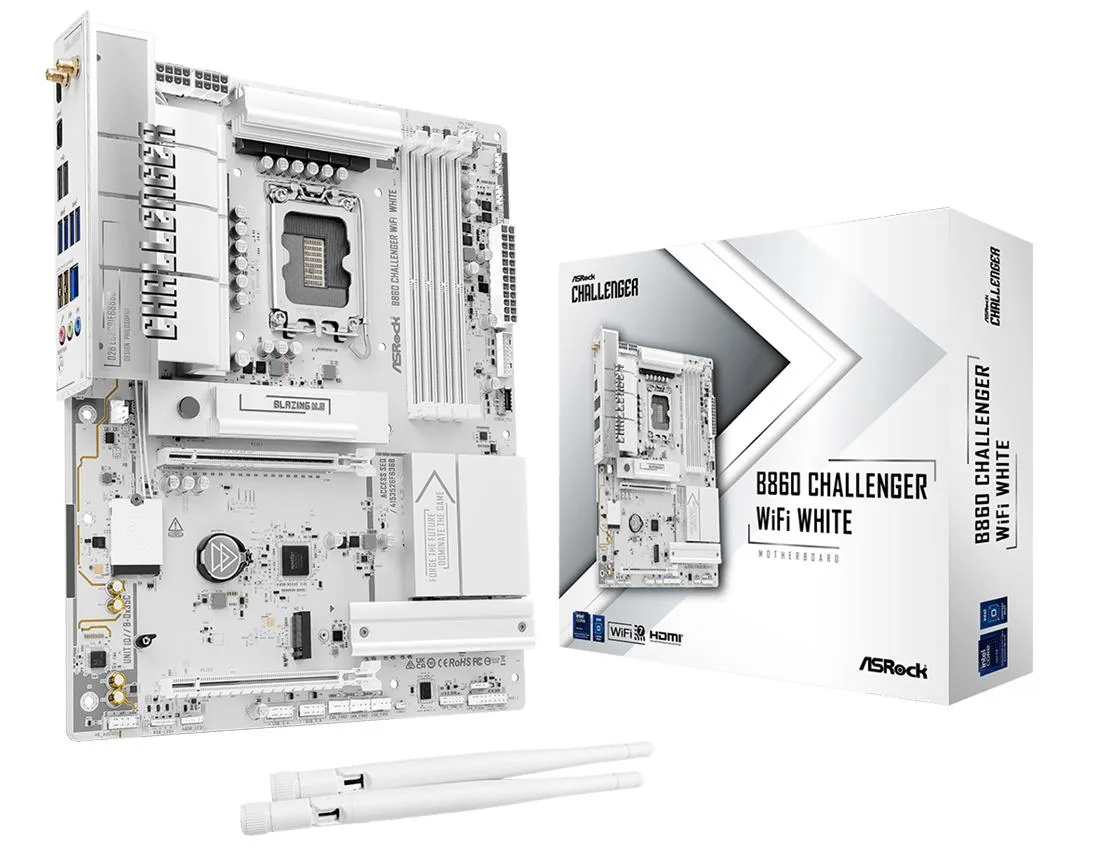

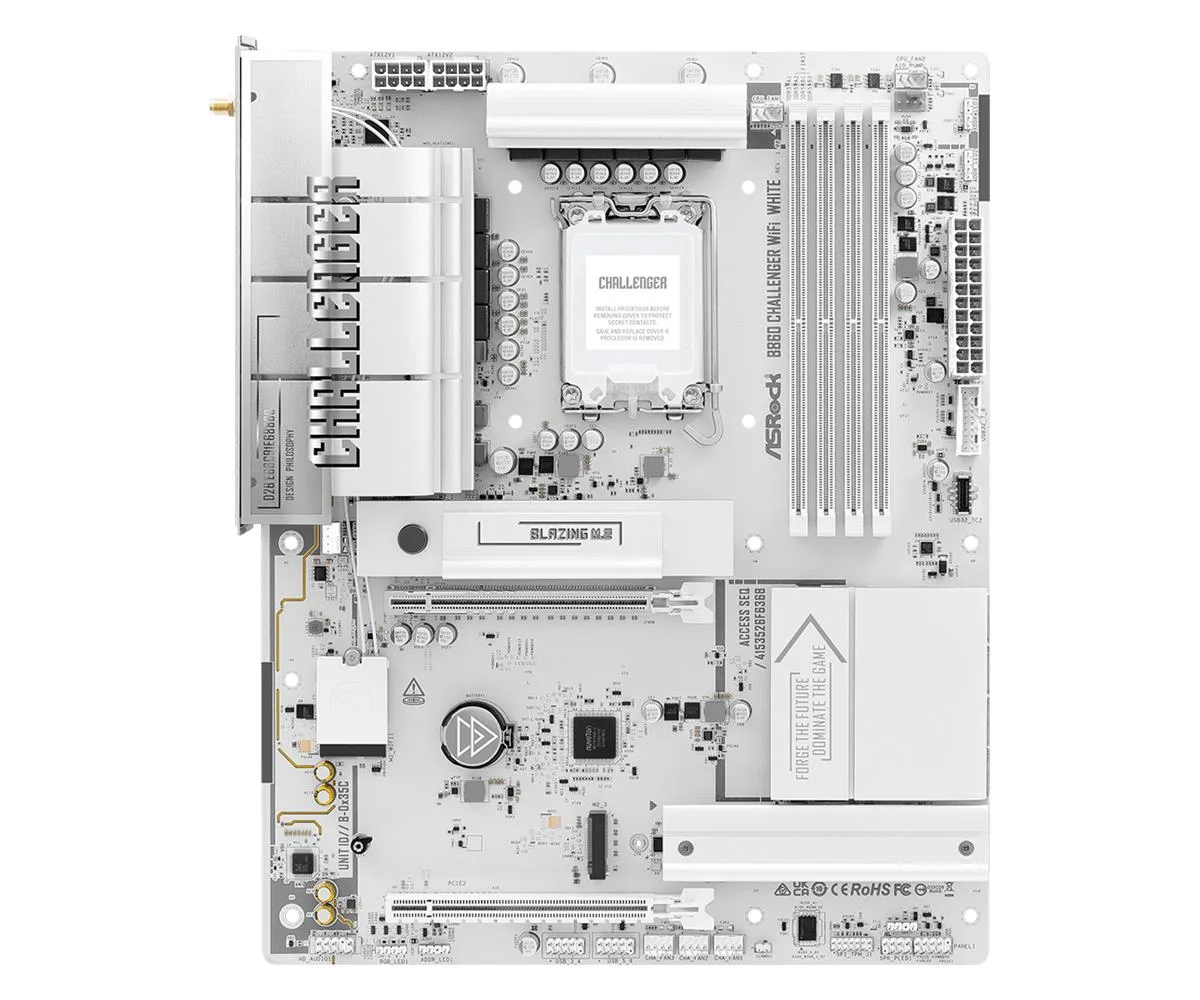

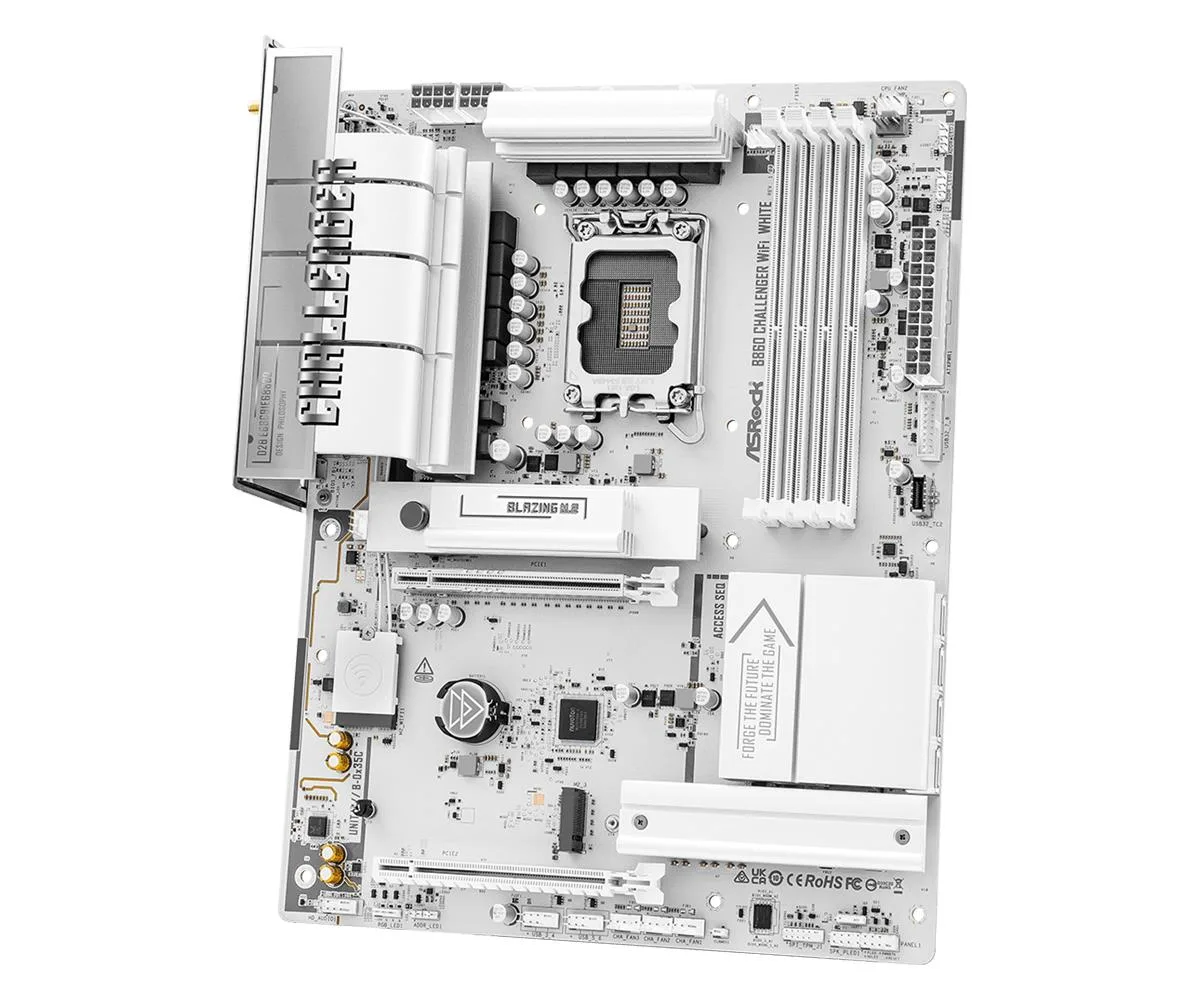

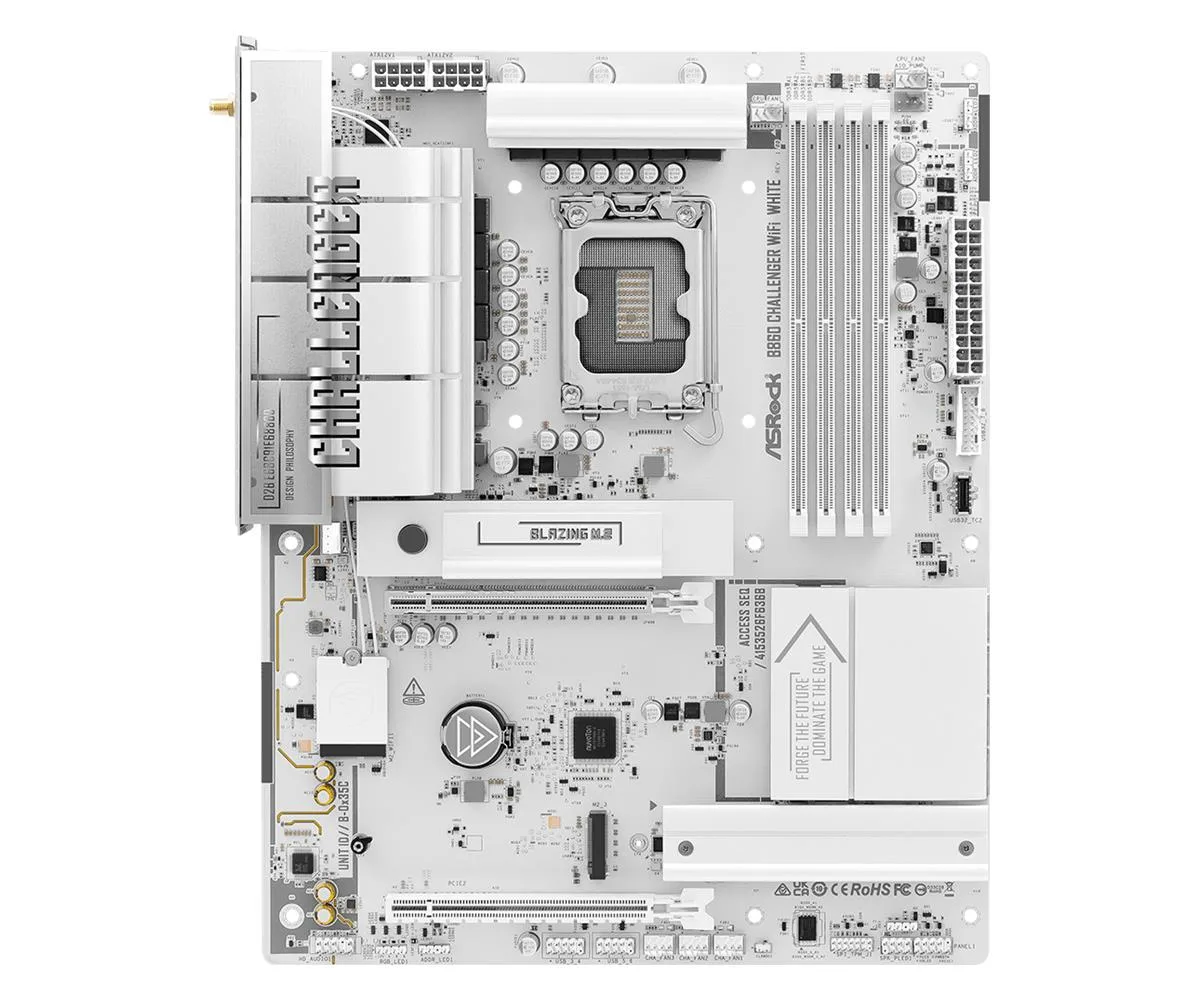

Asrock B860 Challenger WiFi White. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 5.0, M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

The Challenger Series motherboard represents fearless play, bold breakthroughs, and relentless evolution, delivering robust specs with Wi-Fi 7 and gamer-centric specs. Featuring an elegant design with comprehensively pure white components, it stands as the visual centerpiece for pristine white gaming builds.

Forge the Future Dominate the Game
Challenger Series is all about fearless play, bold breakthroughs, and relentless evolution. Packed with solid specs at a gamer-friendly price, it’s the ultimate option for gamers.

Forge the Future Dominate the Game
Challenger Series is all about fearless play, bold breakthroughs, and relentless evolution. Packed with solid specs at a gamer-friendly price, it’s the ultimate option for gamers.

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

BIOS

BIOS flashback buttonYes
BIOS typeUEFI AMI

Expansion slots

1st M.2 highest PCI Express generation5.0
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
Number of M.2 (M) slots1
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1

Features

Audio chipRealtek ALC897
Component forPC
Motherboard chipsetIntel B860
Motherboard chipset familyIntel
Windows operating systems supportedWindows 11 x64

Graphics

HDCPYes
HDCP version2.3
High Dynamic Range (HDR) supportedYes
Parallel processing technology supportNot supported

Internal I/O

12V power connectorYes
ATX Power connector (24-pin)Yes
Front panel audio connectorYes
Front panel connectorYes
Number of chassis fan connectors4
Number of EATX power connectors1
Number of SATA III connectors4
Number of water pump connectors1
RGB LED pin headerYes
TPM connectorYes
USB 2.0 connectors8
USB 3.2 Gen 1 (3.1 Gen 1) connectors9
USB 3.2 Gen 2 (3.1 Gen 2) connectors1

Memory

ECC сompatibilityNon-ECC
Maximum internal memory256 GB
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)8666 MHz
Supported memory clock speeds5600,6800,4800,4400,6533,8666 MHz
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes

Network

BluetoothYes
Bluetooth version5.4
Ethernet LANYes
LAN controllerDragon RTL8125BG
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Packaging content

Antenna includedYes
Cables includedSATA
M.2 standoff includedYes
Screws includedYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Rear panel I/O ports

Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Line-inYes
Microphone inYes
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
WiFi-AP antenna jack2

Storage controllers

Number of HDDs supported4
RAID levels0, 1, 5, 10
RAID supportYes

Technical details

Compliance certificatesFederal Communications Commission (FCC), CE
Sustainability certificatesErP

Weight & dimensions

Depth305 mm
Width244 mm
Garantii36 kuud
EAN4711581494183
Tootja koodB860 CHALLENGER WIFI WHITE

Lisainfo

Kaal 2,07 kg
Kanaleid

7.1 channels, Dual-channel

Bränd

Form

ATX

Varv

White

Cpu

2, Intel, Intel Core Ultra (Series 2), LGA 1851, LGA 1851 (Socket V1), Yes

Storage

7, HDD & SSD, PCI Express 5.0, M.2, SATA III

Liides

2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Mälu

256 Mbit
