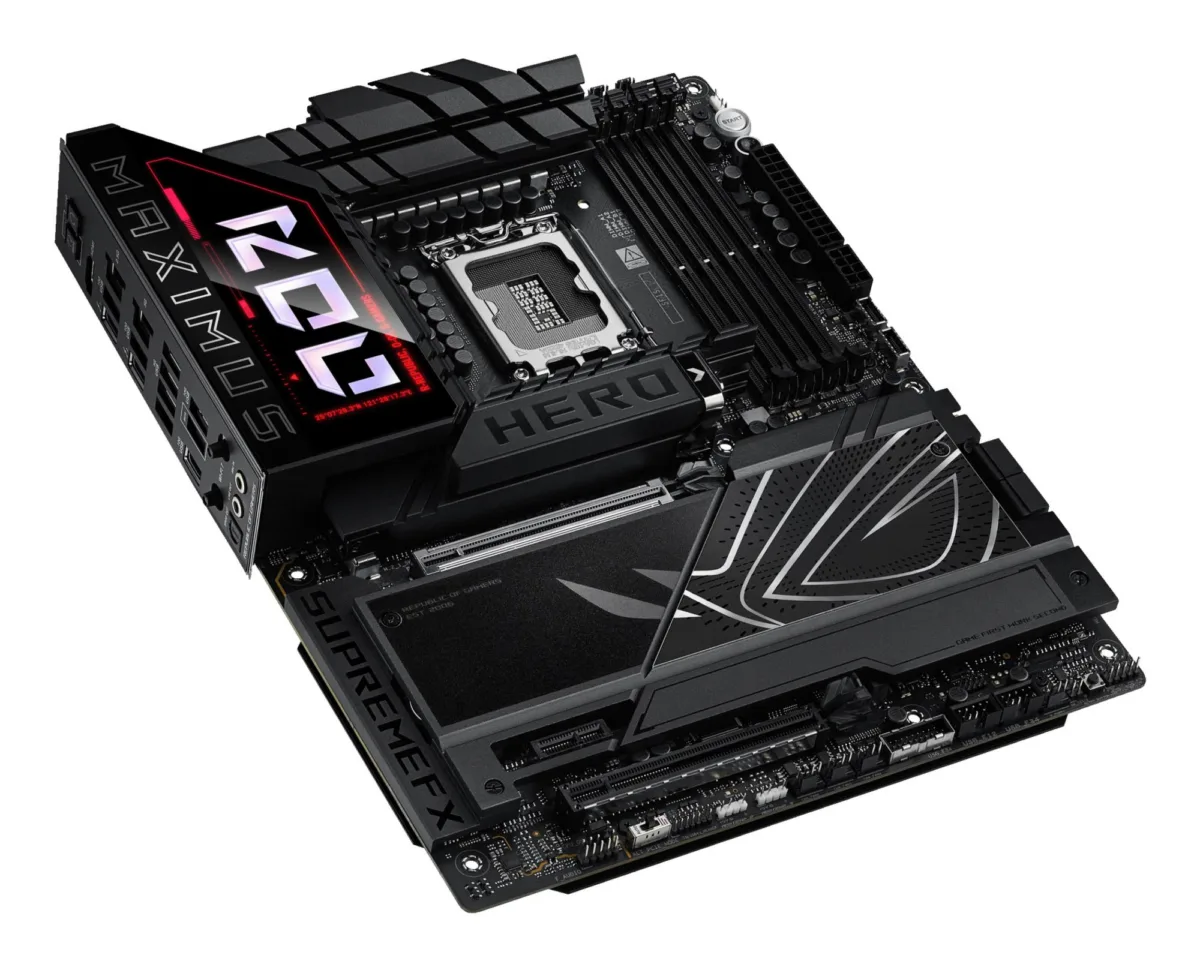

ASUS Intel Z890 LGA1851 ATX Memory DDR5 ROG MAXIMUS Z890 HERO — emaplaat

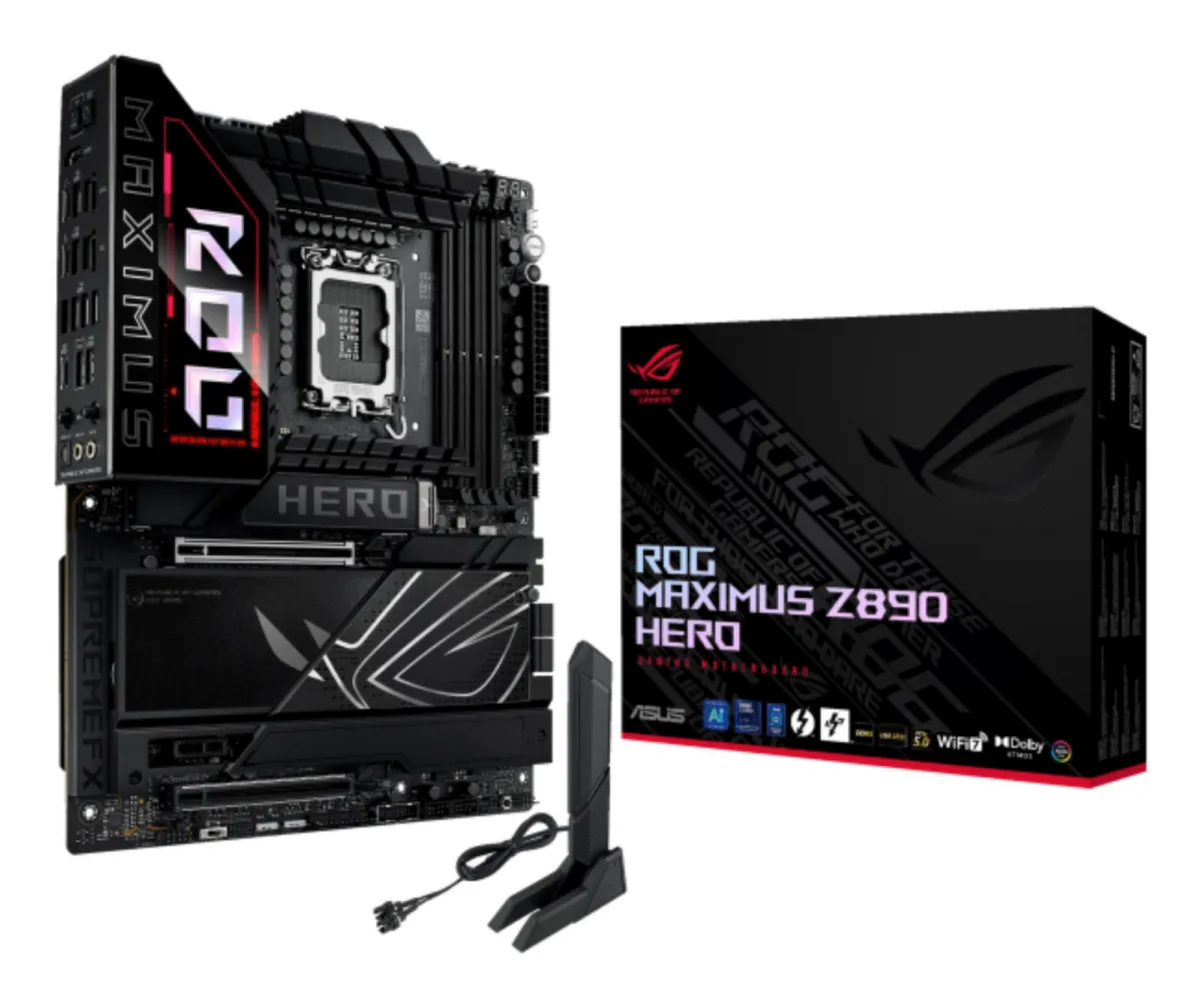

ASUS Intel Z890 LGA1851 ATX Memory DDR5 ROG MAXIMUS Z890 HERO — emaplaat - Pilt 2

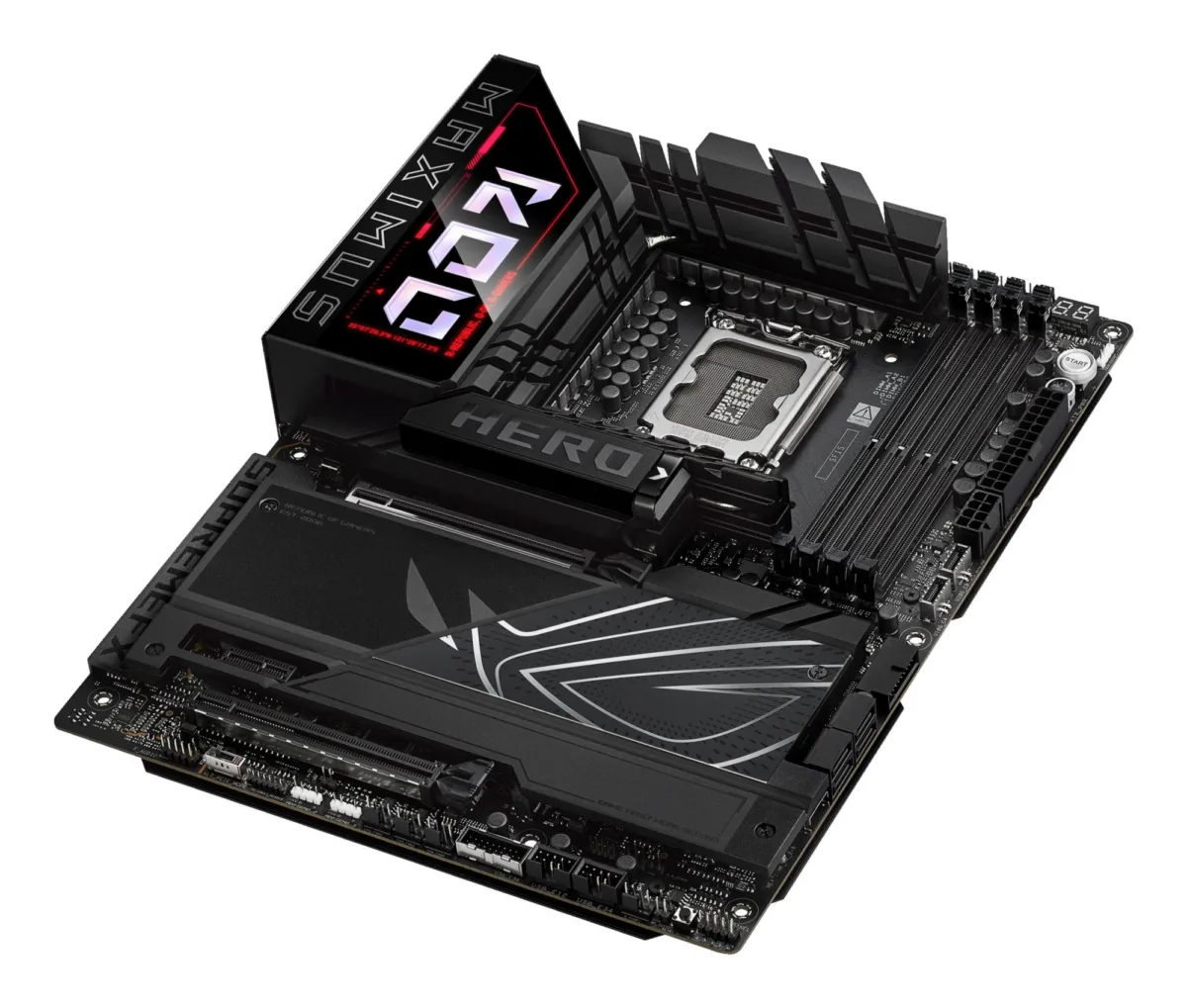

ASUS Intel Z890 LGA1851 ATX Memory DDR5 ROG MAXIMUS Z890 HERO — emaplaat - Pilt 3

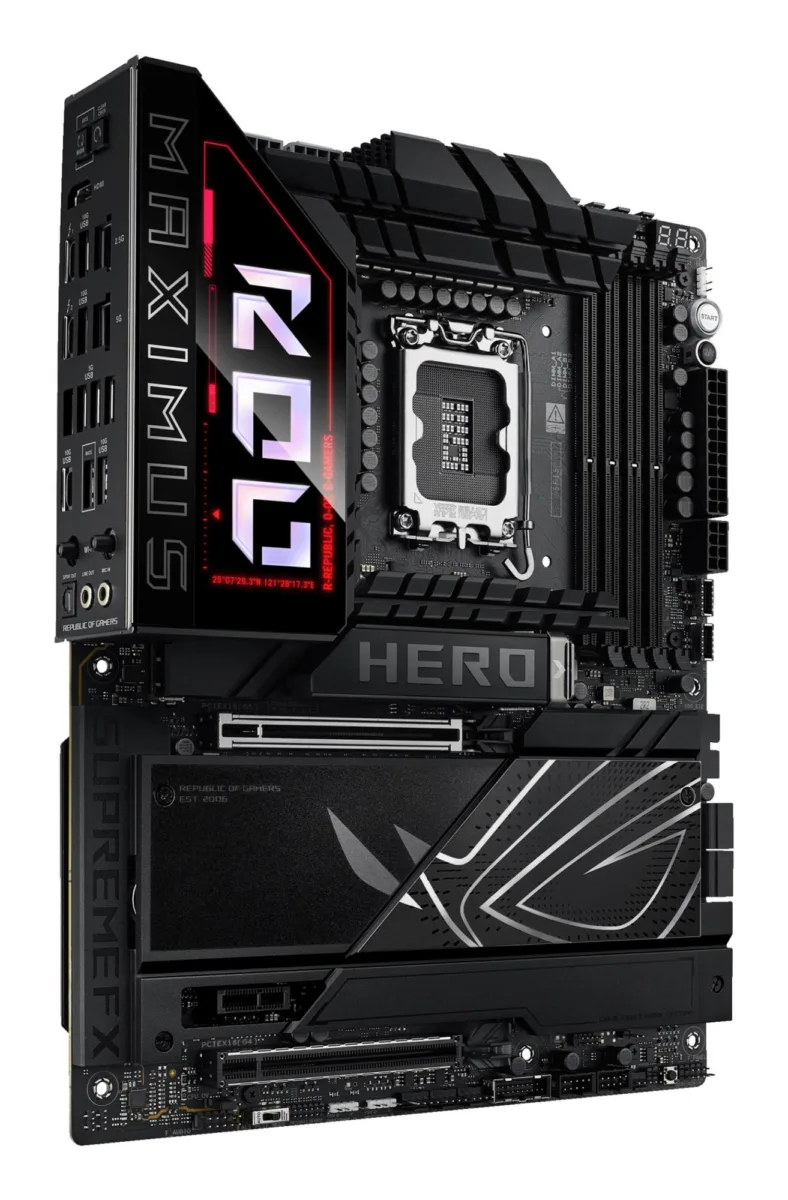

ASUS Intel Z890 LGA1851 ATX Memory DDR5 ROG MAXIMUS Z890 HERO — emaplaat - Pilt 4

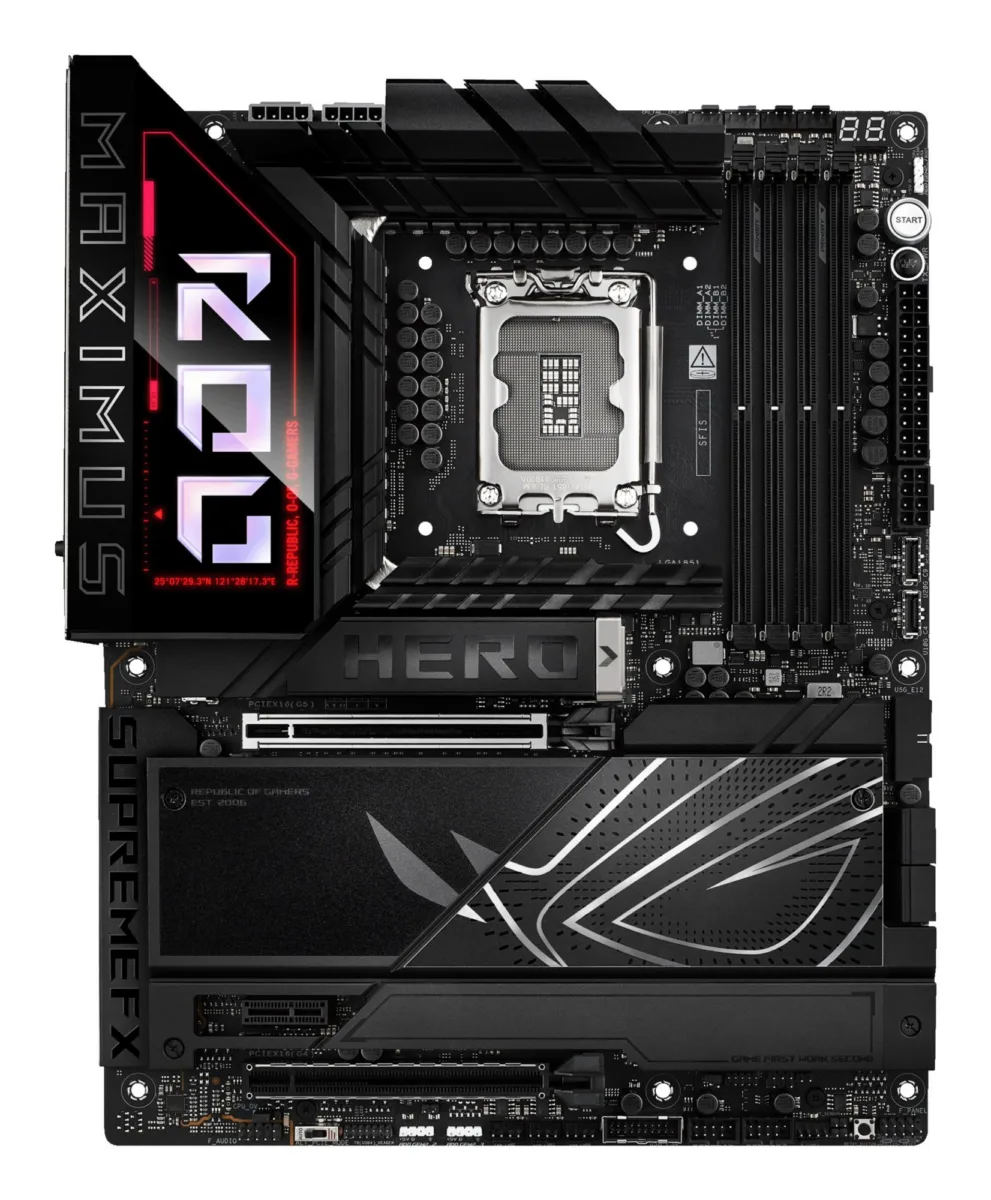

ASUS Intel Z890 LGA1851 ATX Memory DDR5 ROG MAXIMUS Z890 HERO — emaplaat - Pilt 5

ASUS Intel Z890 LGA1851 ATX Memory DDR5 ROG MAXIMUS Z890 HERO — emaplaat

547,42 €

Number of M.2 (M) slots: 6 · PCI Express x16 (Gen 5.x) slots: 1 · PCI Express x16 (Gen 4.x) slots: 1

Laos — kohal 1-5 tööpäeva

4 laos

Maksa kolmes võrdses osas 3 x 182.47€

Tootekood: 1425902 Kategooria:

Kirjeldus

ASUS ROG MAXIMUS Z890 HERO. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be)

ROG Maximus Z890 HERO
The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.

Üldine

NameMB Z890 S1851 ATX/ROG MAXIMUS Z890 HERO ASUS
ModelROG MAXIMUS Z890 HERO

BIOS

Clear CMOS buttonYes
BIOS typeUEFI AMI

Expansion slots

Number of M.2 (M) slots6
PCI Express x16 (Gen 5.x) slots1
PCI Express x16 (Gen 4.x) slots1
PCI Express x1 (Gen 4.x) slots1

Features

Windows operating systems supportedWindows 11
Motherboard chipset familyIntel
Component forPC
Audio chipRealtek ALC4082
Motherboard chipsetIntel Z890

Graphics

Parallel processing technology supportNot supported

Internal I/O

12V power connectorYes
Thunderbolt headers1
EPS power connector (8-pin)Yes
Number of chassis fan connectors4
ATX Power connector (24-pin)Yes
Front panel audio connectorYes
Number of SATA III connectors4
USB 3.2 Gen 2x2 connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 2.0 connectors2

Memory

Unbuffered memoryYes
Maximum internal memory192 GB
Supported memory clock speed (max)8800 MHz
ECC сompatibilityNon-ECC
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR5-SDRAM

Network

Bluetooth version5.4
BluetoothYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Ethernet LANYes

Rear panel I/O ports

USB connector typeUSB Type-A, USB Type-C
Thunderbolt ports quantity2
S/PDIF out portYes
Microphone inYes
HDMI ports quantity1
Ethernet LAN (RJ-45) ports2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

Storage controllers

RAID levels0, 1, 5
RAID supportYes
Number of HDDs supported4

Weight & dimensions

Depth244 mm
Width305 mm
Garantii36 kuud
EAN4711387747223
Tootja koodROG MAXIMUS Z890 HERO

Lisainfo

Kaal 3,42 kg
Mõõtmed 37 × 11 × 31 cm
Varv

Black
Form

ATX
Kanaleid

7.1 channels, Dual-channel
Cpu

Intel, Intel Core Ultra (Series 2), LGA 1851 (Socket V1), Yes
Storage

10, HDD & SSD, M.2, SATA III
Gpu

No
Liides

2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Mälu

256 Mbit
