Be quiet Pure Power 12 750 Watts — toiteplokk

139,18

Fan speed: 0 – 1800 RPM · Number of fans: 1 fan(s) · Fan diameter: 12 cm

Laos — kohal 1-5 tööpäeva

19 laos

Maksa kolmes võrdses osas 3 x 46.39€

Tootekood: 1442605 Kategooria:

Kirjeldus

be quiet! Pure Power 13 M | 750W. Total power: 750 W, AC input voltage: 100 – 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Exceptional quiet, superior features
Pure Power 13 M 750W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 750W offers the best combination of features with outstanding compatibility.

  • 80 PLUS® Gold efficiency (up to 94.3%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
  • Handles massive power excursions
  • Exceptionally silent semi-passive 120mm be quiet! fan
  • Semi-passive construction for quiet and energy-saving operation
  • LLC technology for advanced stability and voltage regulation
  • One massive high-performance 12V-rail
  • One PCIe 5.1 12V-2×6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
  • Full suite of safety features
  • Meets latest requirements for modern standby

Üldine

NameCASE PSU ATX 750W/PURE POWER 13 BP026EU BE QUIET

Certificates

Compliance certificatesBSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus

Design

On/off switchYes
Fan speed0 - 1800 RPM
Number of fans1 fan(s)
Fan diameter12 cm
Cooling typeActive

Logistics data

Products per shipping (inner) case6 pc(s)
Shipping (inner) case gross weight21.5 kg
Shipping (inner) case height23.3 cm
Shipping (inner) case length58 cm
Shipping (inner) case width32.5 cm

Operational conditions

Operating temperature (T-T)0 - 40 °C

Other features

Cable ties includedYes
Screws includedYes

Packaging content

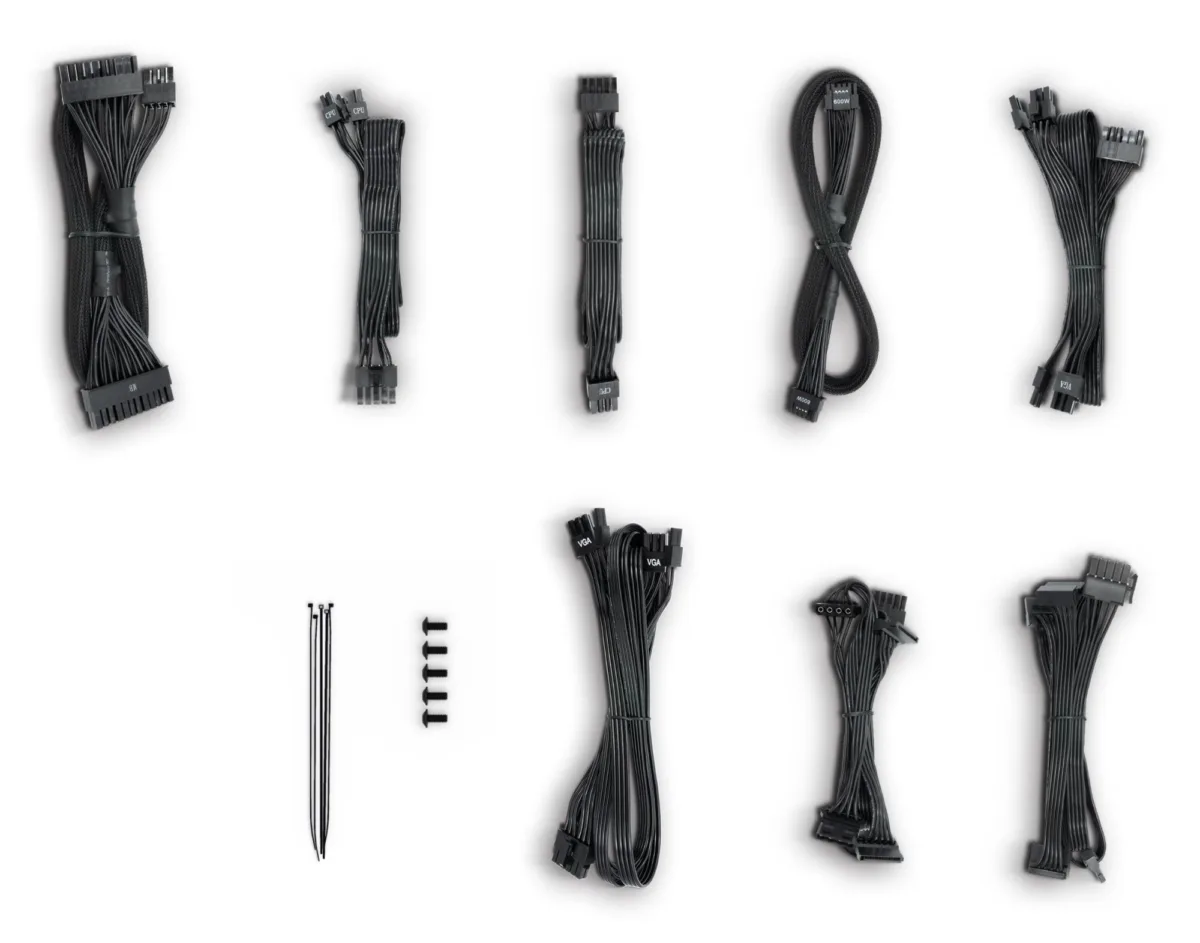

Cables includedAC, CPU, PCIe, Peripheral (Molex), SATA

Performance

Bearing technologyRifle

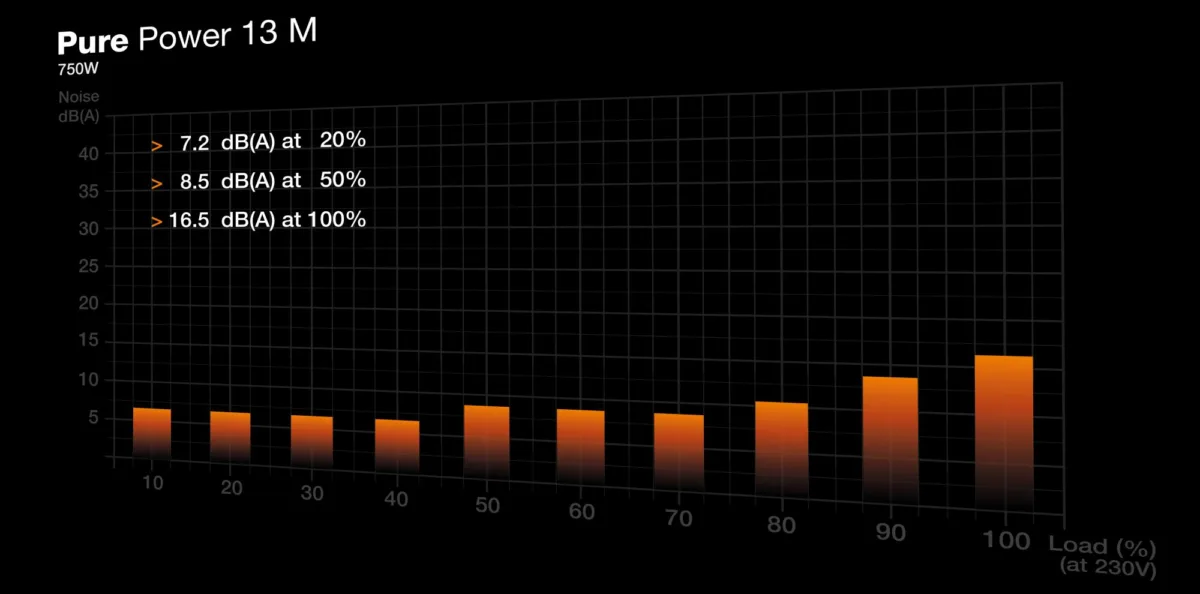

Noise level20.8 dB
EPS version2.92
ATX version3.1
PurposePC
80 PLUS certification80 PLUS Gold

Ports & interfaces

Cabling typeFully-Modular
PCI Express power connectors (12-pin)1
PCI Express power connectors (6+2 pin)4
EPS power connector (8-pin)Yes
Peripheral (Molex) power cable length800,950 mm
Peripheral (Molex) power connectors (4-pin)2
SATA power cable length500,650,800,950 mm
Number of SATA power connectors6
Motherboard power cable length55 cm
Motherboard power connector20+4 pin ATX

Power

Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Efficiency92.6%
Hold time28.62 ms
Max output current (+5Vsb)3 A
Max output current (-12V)0.3 A
Max output current (+5V)20 A
Max output current (+12V1)62.5 A
Max output current (+3.3V)20 A
Combined power (+5Vsb)15 W
Combined power (-12V)3.6 W
Combined power (+5V)120 W
Combined power (+12V)750 W
Combined power (+3.3V)120 W
Number of +12V rail(s)1
Power Factor Correction (PFC) typeActive
Power factor0.98
Maximum input current (@220V)5 A
Maximum input current (@110V)10 A
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Peak power820 W
Total power750 W

Technical details

Sustainability certificatesENERGY STAR, ErP

Weight & dimensions

Weight2.46 kg
Height86 mm
Depth160 mm
Width150 mm
Garantii24 kuud
EAN4260052192184
Tootja koodBP026EU

Lisainfo

Kaal 3,14 kg
Mõõtmed 29 × 10 × 20,5 cm
Cpu

2, 65 cm, Yes

Form

ATX

Varv

Black

Mudel

Pure Power 12
