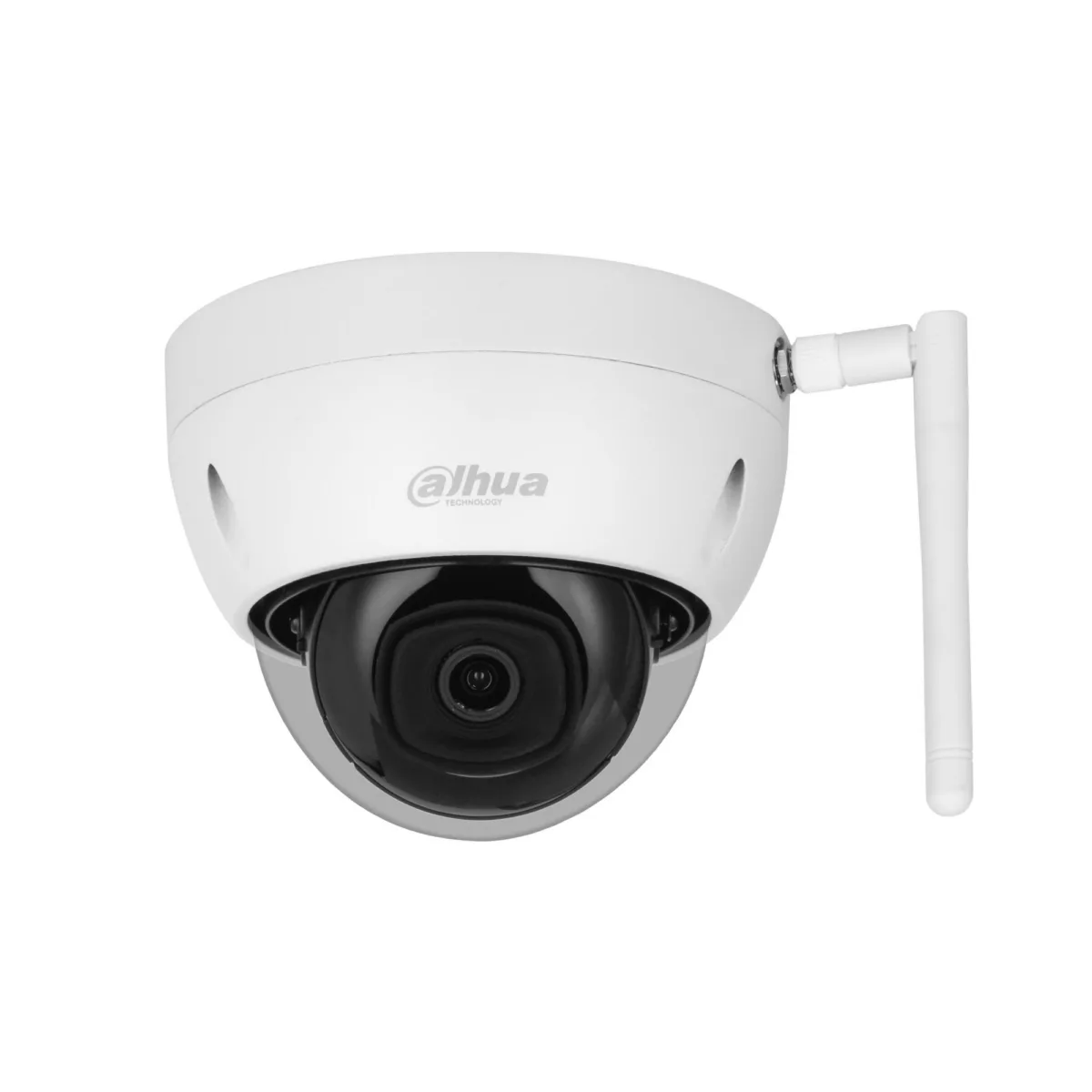

Dahua kuppelIP-kaamera 4MP IPC-HDBW1430DE

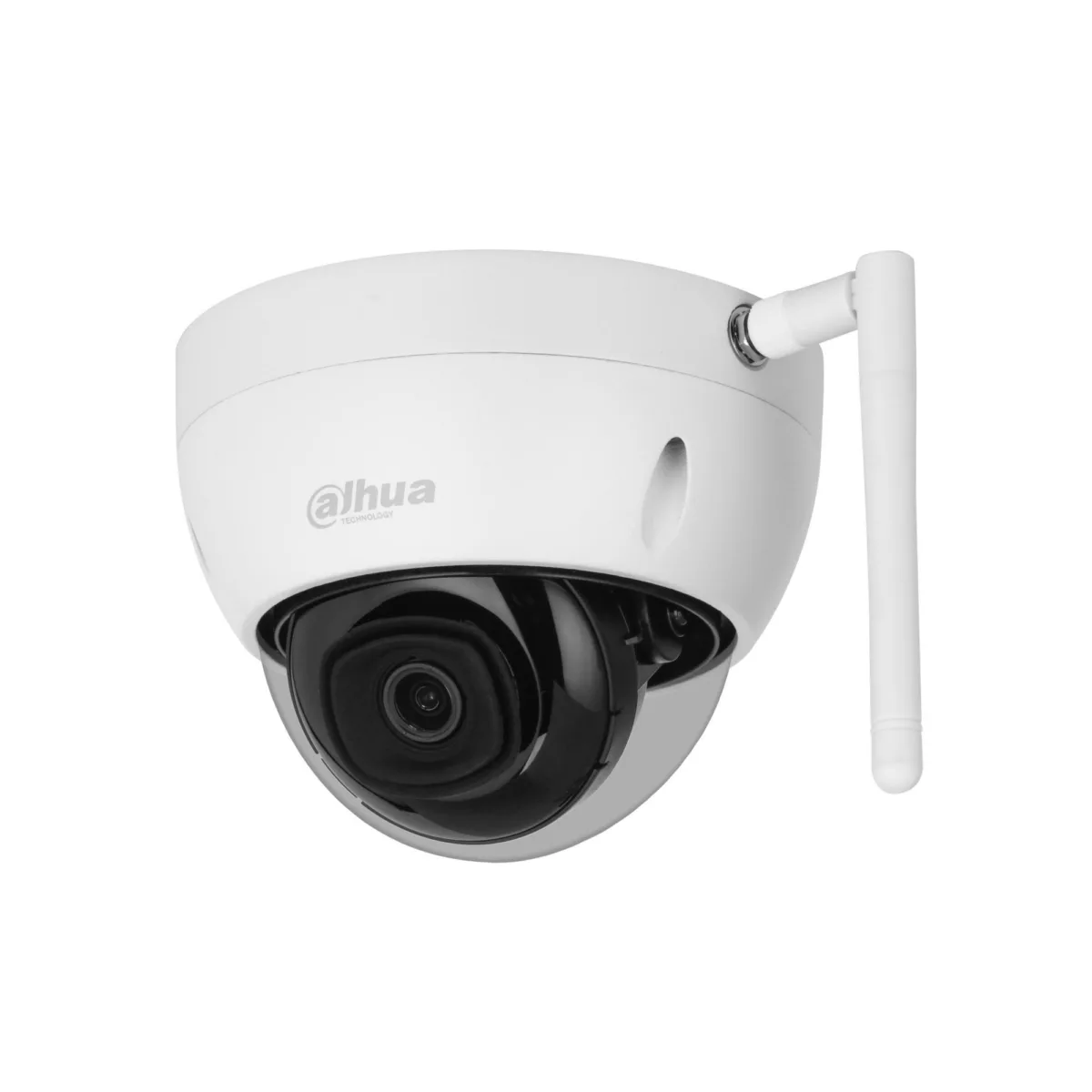

Dahua kuppelIP-kaamera 4MP IPC-HDBW1430DE - Pilt 2

Dahua kuppelIP-kaamera 4MP IPC-HDBW1430DE

189,16 €

Audio system: 1-way · Camera shutter speed: 1/3 – 1/100000 s · Pan range: 0 – 355°

Laos — kohal 1-5 tööpäeva

8 laos

Maksa kolmes võrdses osas 3 x 63.05€

Tootekood: 1372745 Kategooria:

Kirjeldus

Dahua Technology Mobile Camera DH-IPC-HDBW1430DE-SW. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 90°, Tilt angle range: 0 – 75°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3″). Detect distance: 68 m, Observe distance: 27.2 m, Recognize distance: 13.6 m

  • 4-MP 1/3″ CMOS image sensor, low luminance, and high definition image
  • Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED
  • SMART H.264 +/H.265+, flexible coding, applicable to various band width and storage environments
  • DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human)
  • Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area
  • Supports max. 256 G Micro SD card
  • 12 VDC power supply
  • IP67, IK10 protection

Üldine

NameNET CAMERA 4MP IR DOME WIFI/IPC-HDBW1430DE-SW-0280B DAHUA

Audio

Audio codecsG.711a; G.711Mu; PCM; G.726; G.723
Audio system full duplexYes
Audio system1-way

Camera

Adjustment shutter speedAuto/Manual
Camera shutter speed1/3 - 1/100000 s
Camera shutter typeElectronic
Pan range0 - 355°
Tilt angle range0 - 75°
Lens viewing angle, horizontal90°
Angle of rotation355°

Design

IK codeIK10
International Protection (IP) codeIP67
Housing materialMetal
Mounting typeCeiling

Image sensor

Sensor typeCMOS
Progressive scanYes
Optical sensor size25.4 / 3 mm (1 / 3")
Number of sensors1

Lens system

Fixed focal length (thermal module)2.8 mm
Identify distance6.8 m
Maximum aperture number2
Auto focusYes
Recognize distance13.6 m
Observe distance27.2 m
Detect distance68 m
Number of lenses1

Management features

Web browserYes

Network

Number of users6 user(s)
BluetoothNo
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-FiYes
Ethernet LANYes

Night vision

Number of illumination LEDs3
LED typeIR
Night vision distance30 m
Night visionYes

Operational conditions

Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-40 - 60 °C

Packaging content

Number of cameras1

Performance

CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C
Antenna typeExternal
Antennas quantity1
Remote viewingYes
Day/night modeYes
Wide Dynamic Range (WDR)Yes
Placement supportedIndoor & outdoor
Connectivity technologyWired & Wireless
TypeIP security camera

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Power

DC output voltage12
Power source typeDC, PoE

Security

Detection distance80 m
Intelligent Video Surveillance (IVS) system featuresIntrusion
MirrorYes

Storage

Internal memory64 MB
Maximum memory card size256 GB
Compatible memory cardsMicroSD (TransFlash)
Card reader integratedYes
Built-in HDDNo

System requirements

Mobile operating systems supportedAndroid, iOS

Video

Back Light Compensation (BLC)Yes
Bit rate3 Kbps - 20480 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Smart IRYes
Noise reduction technology3D noise reduction
Noise reductionYes
Video streamingYes
Video intelligence analyticYes
Video recordingYes
Supported video modes720p, 1080p
Video compression formatsH.264+, H.264H, H.265+
Video formats supportedH.264, H.264B, H.265
Total megapixels4 MP

Weight & dimensions

Weight414 g
Diameter11.1 cm
Height88.7 mm
Garantii36 kuud
EAN6923172539984
Tootja koodIPC-HDBW1430DE-SW-0280B

Lisainfo

Kaal 0,639 kg
Mõõtmed 14 × 12,5 × 14,5 cm
Form

Dome
Varv

White
Mälu

30 fps, Yes
Resolutsioon

2560 x 1440 pixels, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Liides

Fast Ethernet
Storage

-40 – 60 °C, 16 MB
