Dahua kuppelIP-kaamera 5MP HDBW5541R HDBW5541R-ASE-0280BOPAT

Name: Dahua kuppelIP-kaamera 5MP HDBW5541R HDBW5541R-ASE-0280BOPAT
Brand: DAHUA
SKU: 1453707
Price: 175.77 EUR
Availability: InStock

175,77 €

Camera shutter speed: 1/3 – 1/100000 s · Pan range: 0 – 355° · Tilt angle range: 0 – 65°

Laos — kohal 1-5 tööpäeva

7 laos

Tootekood: 1453707 Kategooria: Võrgukaamerad

Kirjeldus

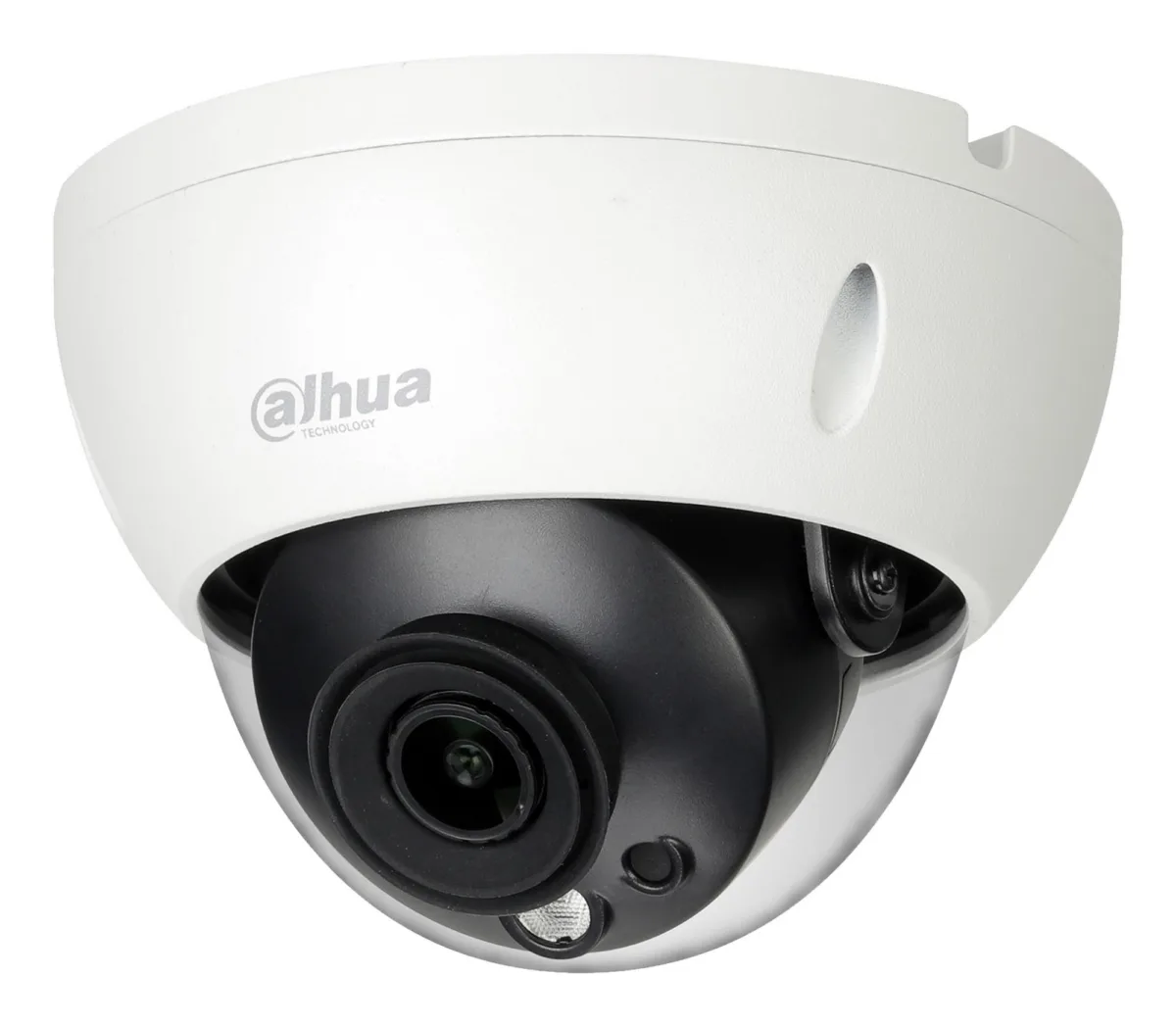

Dahua kuppelkaamera eraldusvõimega 5 MP. Mudel: HDBW5541R-ASE-0280BOPAT.

Ühendus on juhtmega, horisontaalne vaatenurk 98°.

Kuppelkorpus on madala profiiliga ja vähem silmatorkav. Suuna paneme paika paigaldusel, sest hiljem on seda keerulisem muuta kui torukaameral.

Paigaldame selle seadme ise. Fikseeritud hind, 2 aastat garantiid nii seadmele kui tööle, Harjumaa ja Tartumaa. Telli objekti ülevaatus või vaata paigaldusteenust.

Tootja tehnilised andmed

Dahua Technology Pro HDBW5541R-ASE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.002 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 98°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″), Number of effective pixels (H x V): 2688 x 1520 pixels. Detect distance: 30 m, Normal focusing range: 2.5 – 6 m, Fixed focal length: 2.8 mm

1/2.7” 5Megapixel progressive scan CMOS
H.265 & H.264 triple-stream encoding
20 fps@2592 × 1944, 50/60 fps@1080P (1920 × 1080)
WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
2.8 mm fixed lens (3.6 mm, 6.0 mm optional)
1/1 Alarm in/out, 1/1 audio in/out
Max. IR LEDs Length 50 m
Micro SD memory, IP67, IK10

Üldine

Name	NET CAMERA 5MP IR DOME/HDBW5541R-ASE-0280BOPAT DAHUA
Model	IPC-HDBW5541R-ASE-OPAT

Audio

Voice codecs	G.711a, G.711alaw, G.723, G.723.1, G.726, G.726-32
Audio formats supported	AAC

Camera

Adjustment shutter speed	Auto/Manual
Camera shutter speed	1/3 - 1/100000 s
Camera shutter type	Electronic
White balance	Auto, Lamp, Manual, Natural, Outdoor
Auto flip	Yes
Pan range	0 - 355°
Tilt angle range	0 - 65°
Lens viewing angle, diagonal	129°
Lens viewing angle, vertical	71°
Lens viewing angle, horizontal	98°
Angle of rotation	355°
Minimum illumination	0.002 lx
Camera tilt control	Yes
Camera pan control	Yes

Design

Fog proof	Yes
IK code	IK10
International Protection (IP) code	IP67
Housing material	Metal
Mounting type	Ceiling/wall

Image sensor

Number of effective pixels (H x V)	2688 x 1520 pixels
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Number of sensors	1

Lens system

Fixed focal length	2.8 mm
Normal focusing range	2.5 - 6 m
Maximum aperture number	1.6
Auto focus	Yes
Fixed focus	Yes
Detect distance	30 m
Number of lenses	1

Management features

Management software	Smart PSS, DSS, DMSS
Web browser	Yes
Web-based management	Yes

Network

Quality of Service (QoS) support	Yes
Streaming method	Multicast, Unicast
Number of users	20 user(s)
Bluetooth	No
Wi-Fi	No
Supported network protocols	IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP ;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP ;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;SNMP
Networking standards	IEEE 802.1x
Ethernet LAN	Yes

Night vision

Number of illumination LEDs	3
LED type	IR
Night vision distance	80 m
Night vision	Yes

Operational conditions

Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-30 - 60 °C

Packaging content

Manual	Yes
Number of cameras	1

Performance

Plug and Play	Yes
Alarm input/output	Yes
People counting function	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Type	IP security camera

Ports & interfaces

DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1

Power

DC output voltage	12
Power consumption (typical)	12.4 W
AC input voltage	24 V
Power source type	AC, DC, PoE

Security

Active tampering alarm	Yes
Mirror	Yes
Motion sensor	Yes
Privacy protection	Yes
Video motion detection	Yes

Storage

Maximum memory card size	256 GB
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
Built-in HDD	No

System requirements

Mobile operating systems supported	Android, iOS
Windows operating systems supported	Yes

Video

Back Light Compensation (BLC)	Yes
Bit rate	H.264: 32 Kbps–8192 Kbps, H.265: 19 Kbps– 8192 Kbps
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)	Yes
Flip & mirror	Yes
Highlight Compensation (HLC)	Yes
Privacy masking	Yes
Region of Interest (ROI) encoding	Yes
Smart IR	Yes
Gain control type	Auto/Manual
Noise reduction technology	3D noise reduction
Noise reduction	Yes
Video streaming	Yes
Video intelligence analytic	Yes
Supported video modes	720p, 1080p
Video compression formats	H.264, H.264+, H.265, H.265 Pro, H.265 Pro+, H.265+
Total megapixels	5 MP

Weight & dimensions

Weight	950 g
Height	117.9 mm
Depth	159 mm

Garantii	36 kuud
EAN	6923172527431
Tootja kood	HDBW5541R-ASE-0280BOPAT

Lisainfo

Kaal	0,665 kg
Mõõtmed	15,5 × 13,5 × 15,5 cm
Form	Dome
Varv	White
Resolutsioon	2688 x 1520 pixels, 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Mälu	30 fps
Kanaleid	1.0 channels
Liides	Fast Ethernet
Storage	-30 – 60 °C
