Kirjeldus

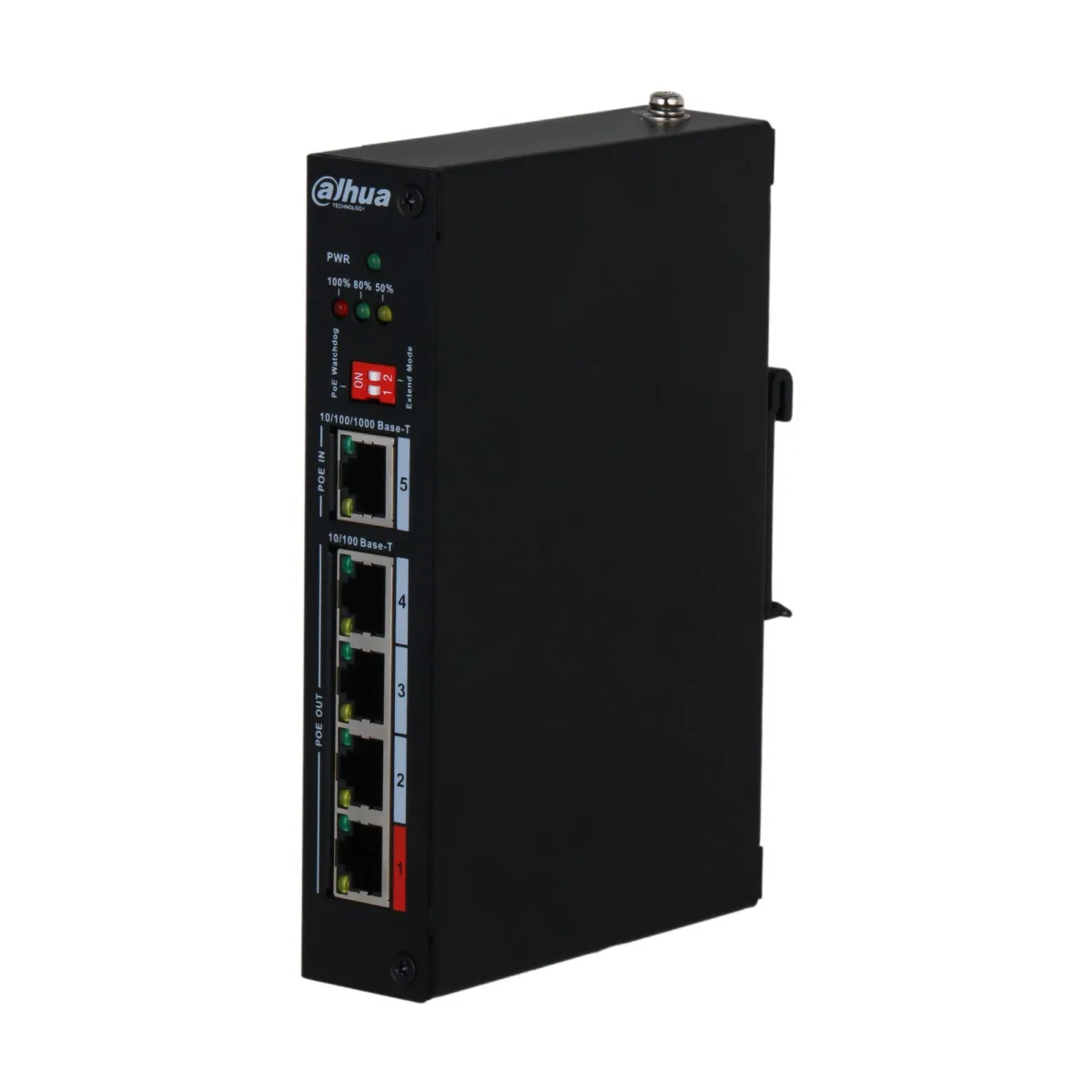

Dahua Technology PFT1500. Type: Network transmitter, Maximum transfer distance: 250 m, Data transfer rate: 1000 Mbit/s. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u,…. Host interface: RJ-45. Product colour: Black, Housing material: Metal, Mounting type: Desk. Power consumption (typical): 5 W, Power consumption (transmitter) (max): 90 W, Total Power over Ethernet (PoE) budget: 90 W
The Device is a hardened PoE extender. It works together with conventional PoE devices to extend their maximum base transmission distance to 350 meters.

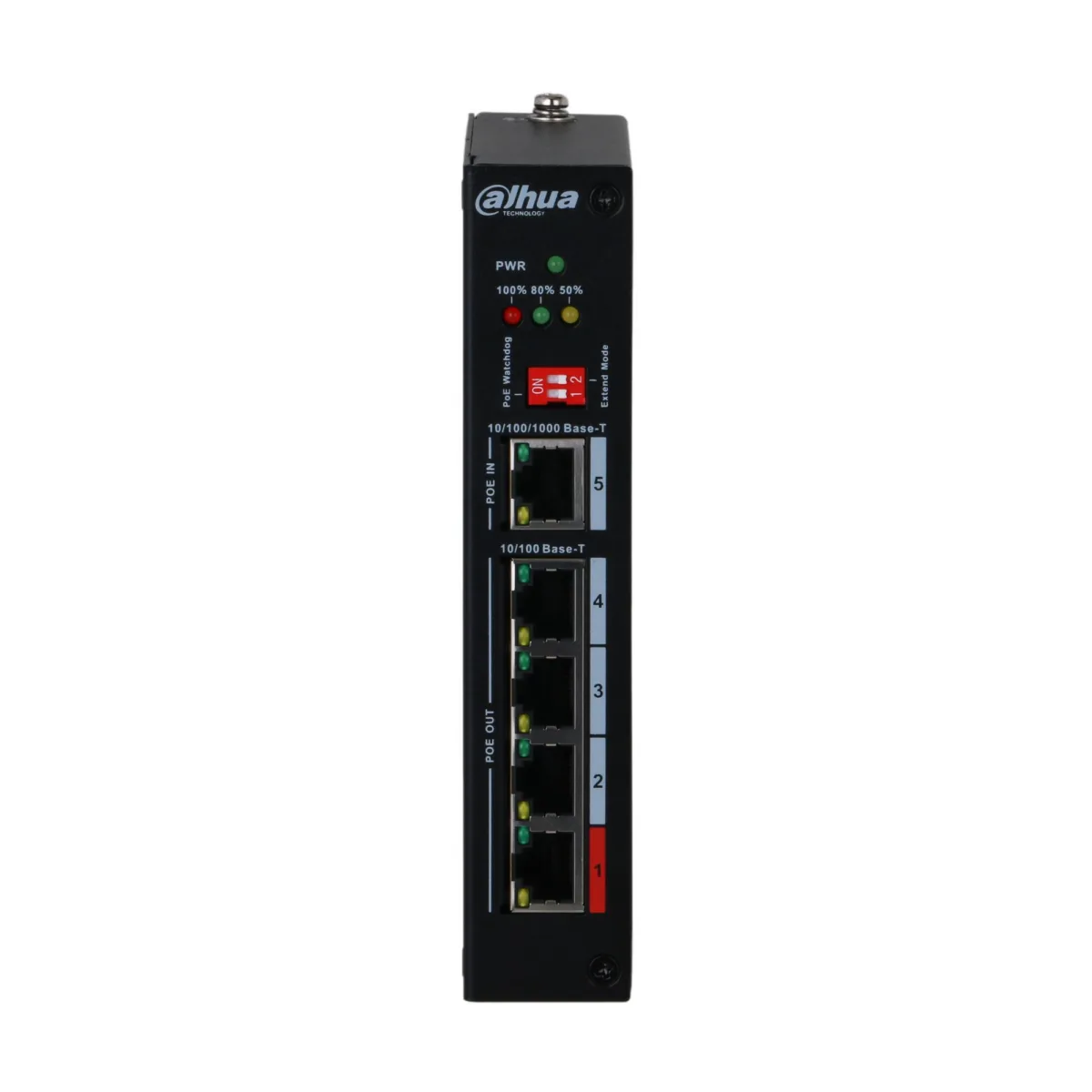

- 4× 100 Mbps PoE Ethernet ports, 1 × 1000 Mbps PoE Ethernet port
- All ports meet the requirements of IEEE802.3af and IEEE802.3at standards. The red ports also conform with Hi-PoE and IEEE802.3bt standards
- 250 m long-distance PoE transmission, which can be enabled by the DIP switch
- PoE Watchdog for real-time detection of terminal device status
- Fanless
- Full-metal
- Lightning Protection: common mode: 4 kV, differential mode: 2 kV

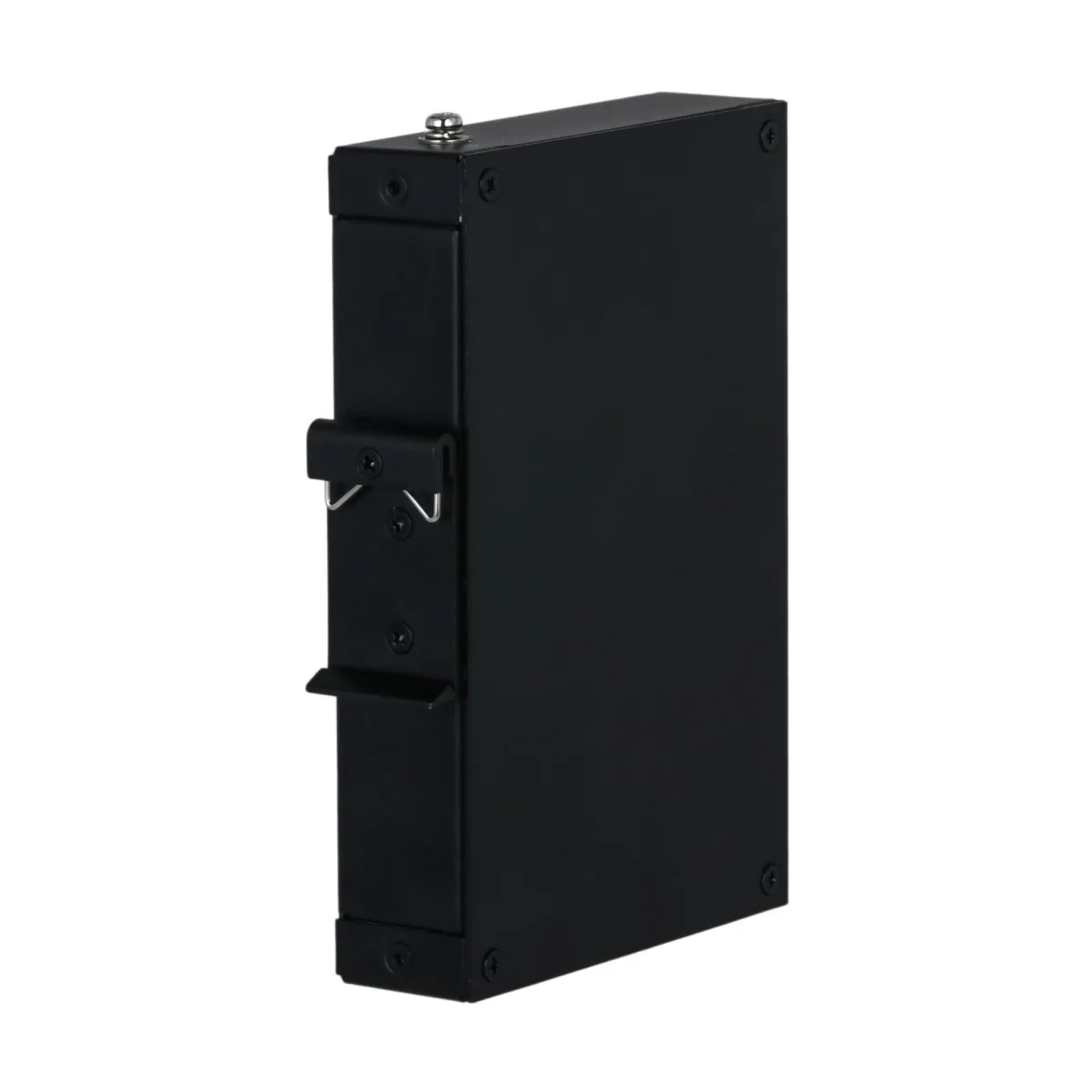

- Desktop mount and DIN-rail mount
