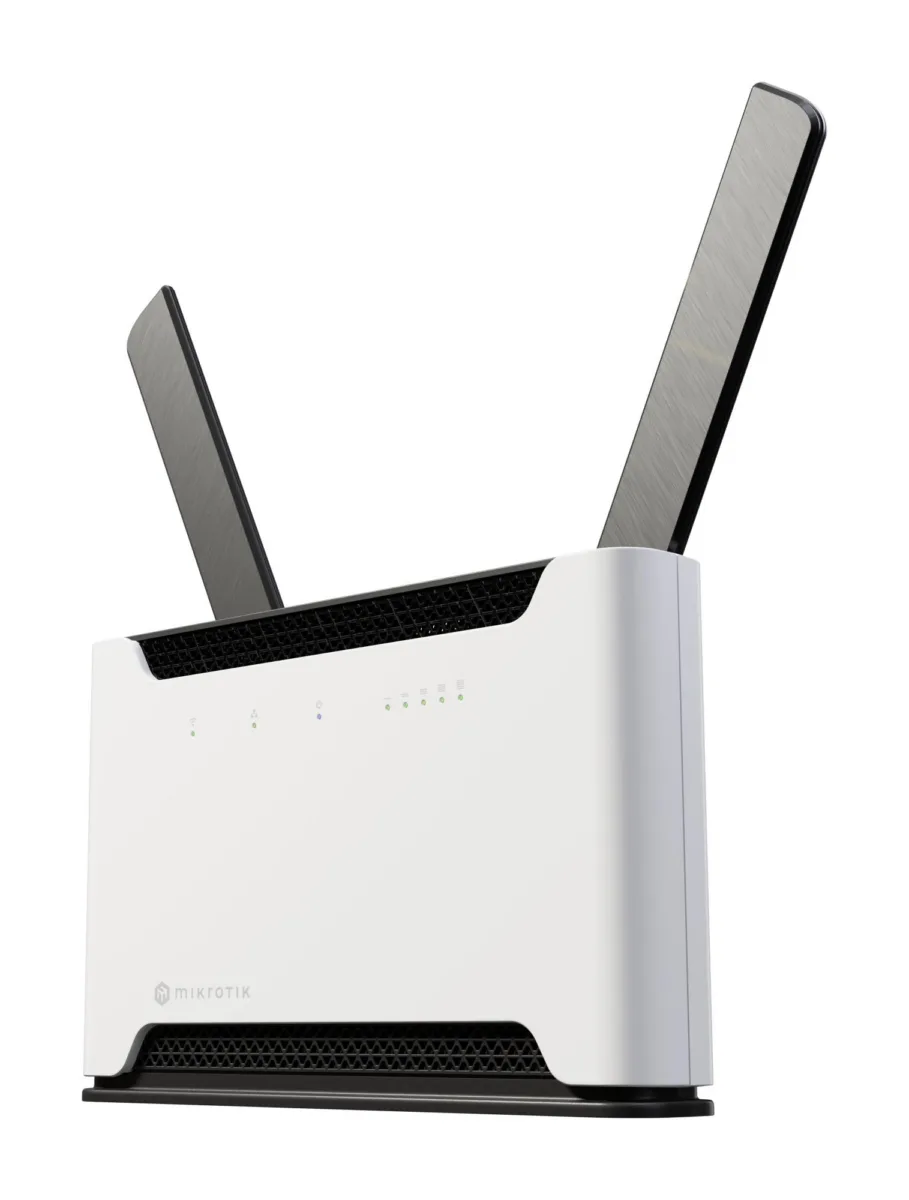

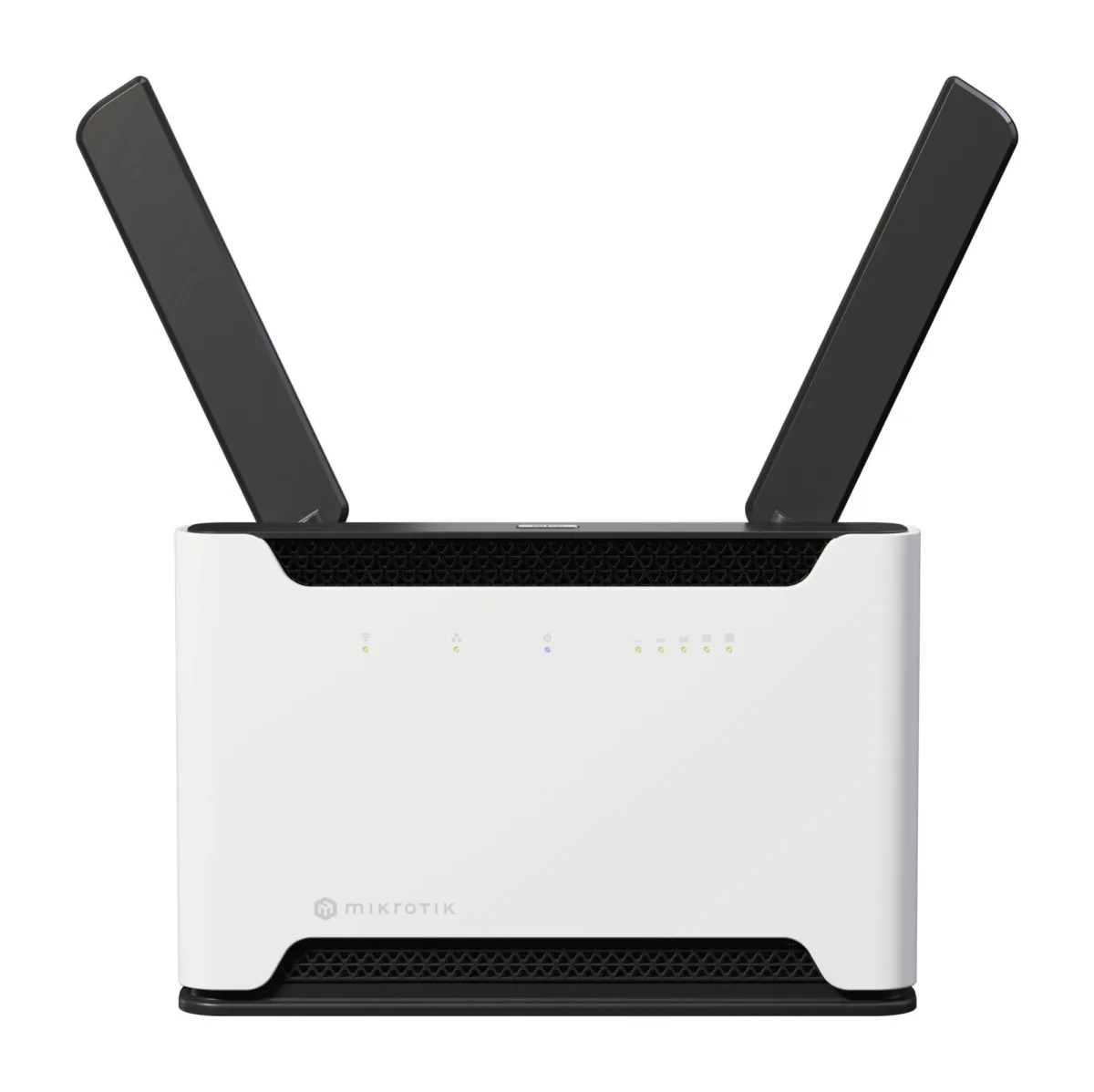

MikroTik Chateau LTE18 ax LTE 4G — ruuter

322,36 €

Antennide arv: 2 · Antennivõimenduse tase (maksimaalne): 6 dBi · Ühiku kõrgus: 24.5 cm

Laos — kohal 1-5 tööpäeva

8 laos

Maksa kolmes võrdses osas 3 x 107.45€

Tootekood: 1381430 Kategooria:

Kirjeldus

Mikrotik Chateau LTE18 ax. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1200 Mbit/s. Ethernet LAN interface type: Ethernet, Ethernet LAN data rates: 2500 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 4G, 4G standard: LTE-TDD & LTE-FDD, GSM bands supported: 850,900,1800,2100 MHz. Product type: Tabletop router, Product colour: White

On the surface, the new Chateau is very similair to the previous models. We had a fantastic LTE18 launch with our partners at LMT – the leading mobile operator in Latvia. Our Chateau replaced the usual brands – and the client satisfaction skyrocketed. Most users appreciated better speed and stability, as well as the abundance of useful RouterOS features and general flexibility. And don’t forget the elegant look that fits right in anywhere – from traditional homes and luxury residences to modern office and corporate environments.

The next obvious step in the Chateau series was perfecting the wireless capabilities. With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau LTE18 ax can deliver unprecedented speed. If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! We’ve made massive improvements to the wireless radio and antennas. Chateau LTE18 ax supports MIMO 4×4 on LTE. There are 4 built-in LTE antennas and 2 optional external network antennas for exceptional coverage in your whole home!

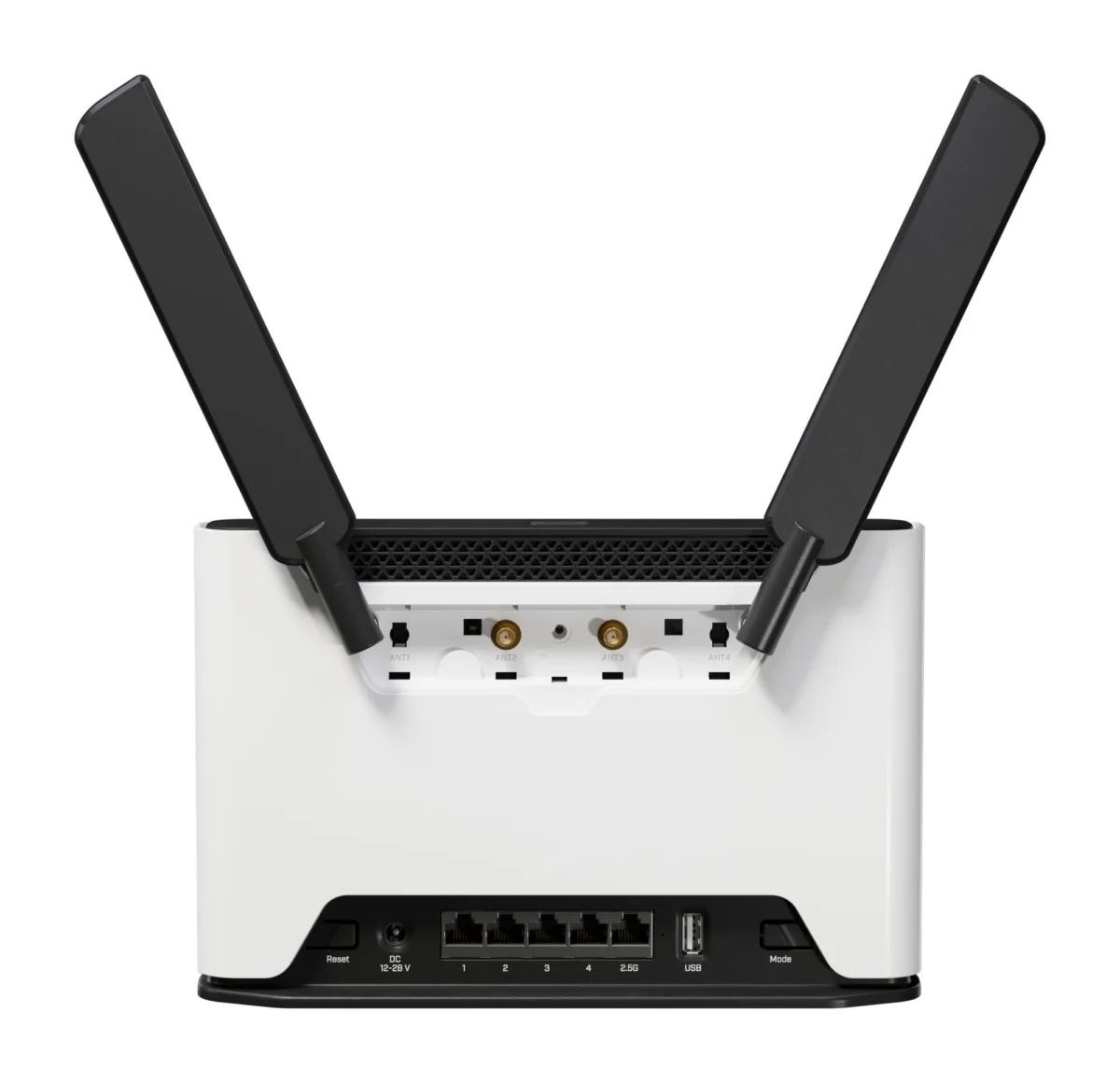

With speeds like that, the ports also had to rise to the occasion. We kept four Gigabit Ethernet ports and added a 2.5 Gigabit Ethernet port on top. And let’s not forget the USB 3.0 which can be handy for storage purposes.

The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.

The most advanced software on the market – RouterOS
We have been making our own software since 1996. And over the years, we’ve managed to create the most powerful and flexible networking software on the market. With each new version, our priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job. Run a secure VPN from the office directly to your home, enable parental control, QoS (traffic prioritization for certain needs, such as streaming), complex firewall rules, IPsec hardware acceleration, VLAN, e-mail or SMS notifications.. You can even automate complex trigger notifications (“Your bandwidth has reached X for Y minutes!”) and modify queues based on bandwidth usage. If you can imagine it – RouterOS can achieve it.

There are no paywalls and no confusing subscriptions. You’re getting all the features – from consumer to enterprise-grade. For mobile operators and ISPs, this is groundbreaking. Finally – a single product to satisfy the most diverse group of people.

Built with security in mind
Not only does RouterOS come with robust security options, we also focus on the production security. There is no outsourcing, every Chateau device is assembled at our EU contract manufacturers, and all the components come from reputable, trusted partners – such as Qualcomm. We cooperate with European law-makers and work hard to ensure full compliance with all the necessary safety policies. MikroTik is all about smooth, long-term cooperation without surprises.

Jack of all trades… master of many!
Chateau is a remarkable choice for any mobile operator. It can be customized with a variety of labels or printed branding. And operators can use the TR-069 technology to create custom remote client management options, such as router configuration via the same web-page clients are using to pay the mobile bill. Advanced users, seasoned sysadmins, and networking enthusiasts can take advantage of the astounding depth of RouterOS. And the non-tech households can skip all that, using a simple, straightforward web-page instead. Now is the time for great networking without compromises. Secure remote work options and a blazing fast Internet connection are no longer a luxury. They are a necessity. And Chateau is the solution.

Üldine

NameWRL ROUTER CHATEAU LTE18 AX/5HAXD2HAXD-TC&EG18-EA MIKROTIK
ModelS53UG+5HaxD2HaxD-TC&EG18-EA

Antenn

Antennide arv2
Antennivõimenduse tase (maksimaalne)6 dBi
Antenni kujundusExternal

Disain

Toote tüüpTabletop router
Seinale kinnitatavYes
Toote värvWhite

ELKO Verified Logistics Data

Ühiku kõrgus24.5 cm
Ühiku sügavus34.5 cm
Ühiku laius7.5 cm

Funktsioonid

Välkmälu128 MB
Sisemälu128 MB
Protsessorituumad4
Protsessori sagedus864 MHz
Sisseehitatud protsessorYes

Juhtimisfunktsioonid

LähtestusnuppYes
Teenusekvaliteedi (QoS) tugiYes

Juhtmevaba LAN-i omadused

WLAN edastuskiirus (teine laineala)1200 Mbit/s
WLAN edastuskiirus (esimene laineala)574 Mbit/s
WiFi-standardid802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN edastuskiirus (max)1200 Mbit/s
Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi lainealaDual-band (2.4 GHz / 5 GHz)

Kaal ja mõõtmed

Kõrgus44 mm
Laius240 mm
Sügavus156 mm

Mobiilivõrk

Lühisõnumiteenus (SMS)Yes
SIM-kaardi tüüpMicroSIM
Toetatud 4G-ribad700,800,850,900,1800,2100,2300,2500,2600 MHz
Toetatud GSM-sagedusalad850,900,1800,2100 MHz
4G-standardidLTE-TDD & LTE-FDD
Mobiilsidevõrgu põlvkond4G

Pakendi sisu

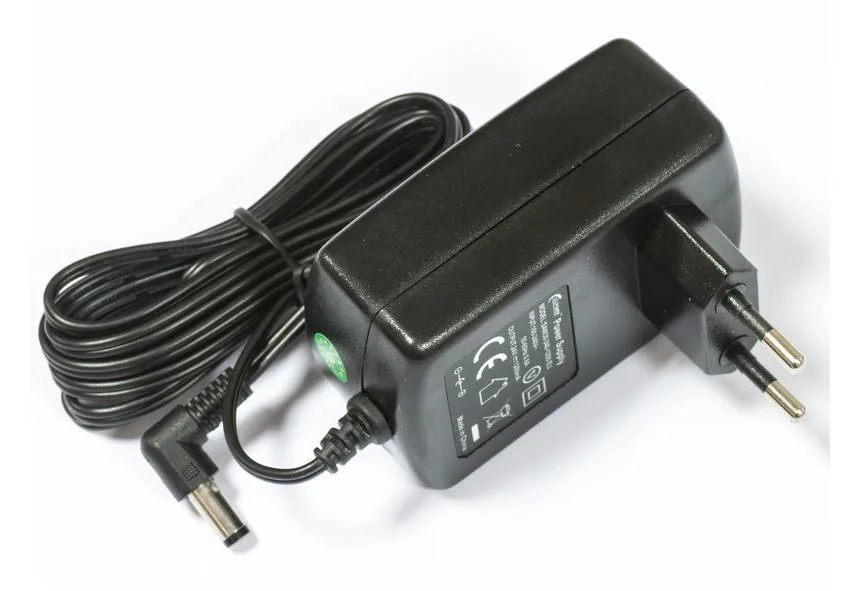

AC-adapter kaasa arvatudYes

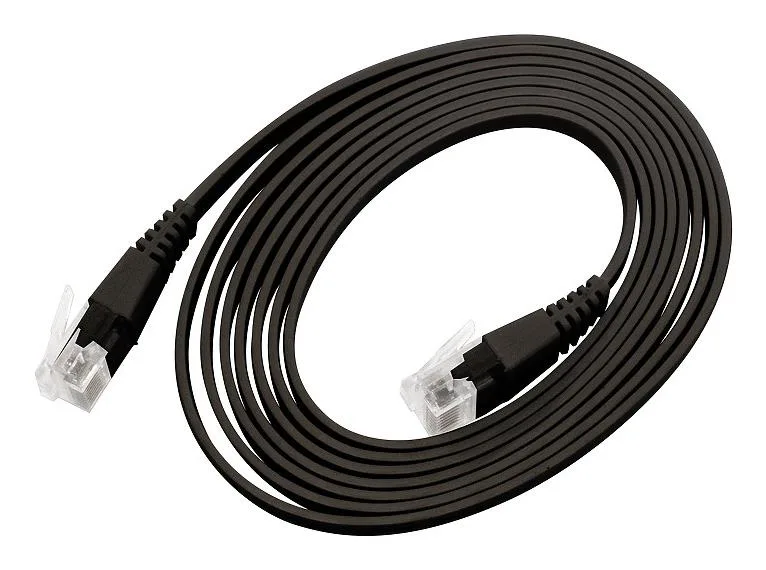

Kaablid kaasa arvatudUTP

Pesad & liidesed

DC-pistikYes
USB 2.0 portide arv1
USB portYes
Ethernet LAN (RJ-45) pordid4

Sertifikaadid

SertifikaatCE, EAC
VastavussertifikaadidRoHS

Töötingimused

Kasutamistemperatuur (T-T)-40 - 65 °C

Võimsus

Väline toiteadapterYes
Võimsustarve (tüüpiline)16 W
Väljundpinge12 - 28 V
Toiteallika tüüpDC

Võrgustumine

VõrgustandardidIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Kaabeldustehnoloogia10/100/1000Base-T(X)
Ethernet LAN-i andmeedastuskiirused2500 Mbit/s
Ethernet LAN-liidese tüüpEthernet
Ethernet LANYes

WAN-ühendus

WAN-ühenduse tüüpRJ-45
3G/4G USB modemi ühilduvusYes
SIM kaardi avaYes
Ethernet WANYes
Garantii12 kuud
EAN4752224007889
Tootja koodS53UG+5HAXD2HAXD-TC&EG18-EA

Lisainfo

Kaal 1,3 kg
Mõõtmed 34,5 × 7,5 × 24,5 cm
Mälu

1000 MB

Mudel

Chateau LTE18 ax
