MikroTik IEEE 802.11b IEEE 802.11g IEEE 802.11n — tugijaam

90,20

Antenna gain level (max): 2.5 dBi · Antennas quantity: 4 · Ethernet LAN data rates: 10,100,1000 Mbit/s

Otsas — tarneaeg täpsustamisel, küsi pakkumist

Laost otsas

Tootekood: 1235107 Kategooria:

Kirjeldus

Mikrotik cAP ac. 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 13 W

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.

Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.

The cAP ac is a feature packed device with a sleek enclosure, that can become inconspicuous with
the push of a button – the customizable mode button in the device center will turn off all lights and
sounds at it’s default configuration, but can be reconfigured to launch any RouterOS script.

Antenna

Antenna featuresIntegrated antenna
Antenna gain level (max)2.5 dBi
Antenna typeInternal
Antennas quantity4

Certificates

CertificationCE, FCC, IC, EAC, ROHS

Design

InternalNo
LED indicatorsYes

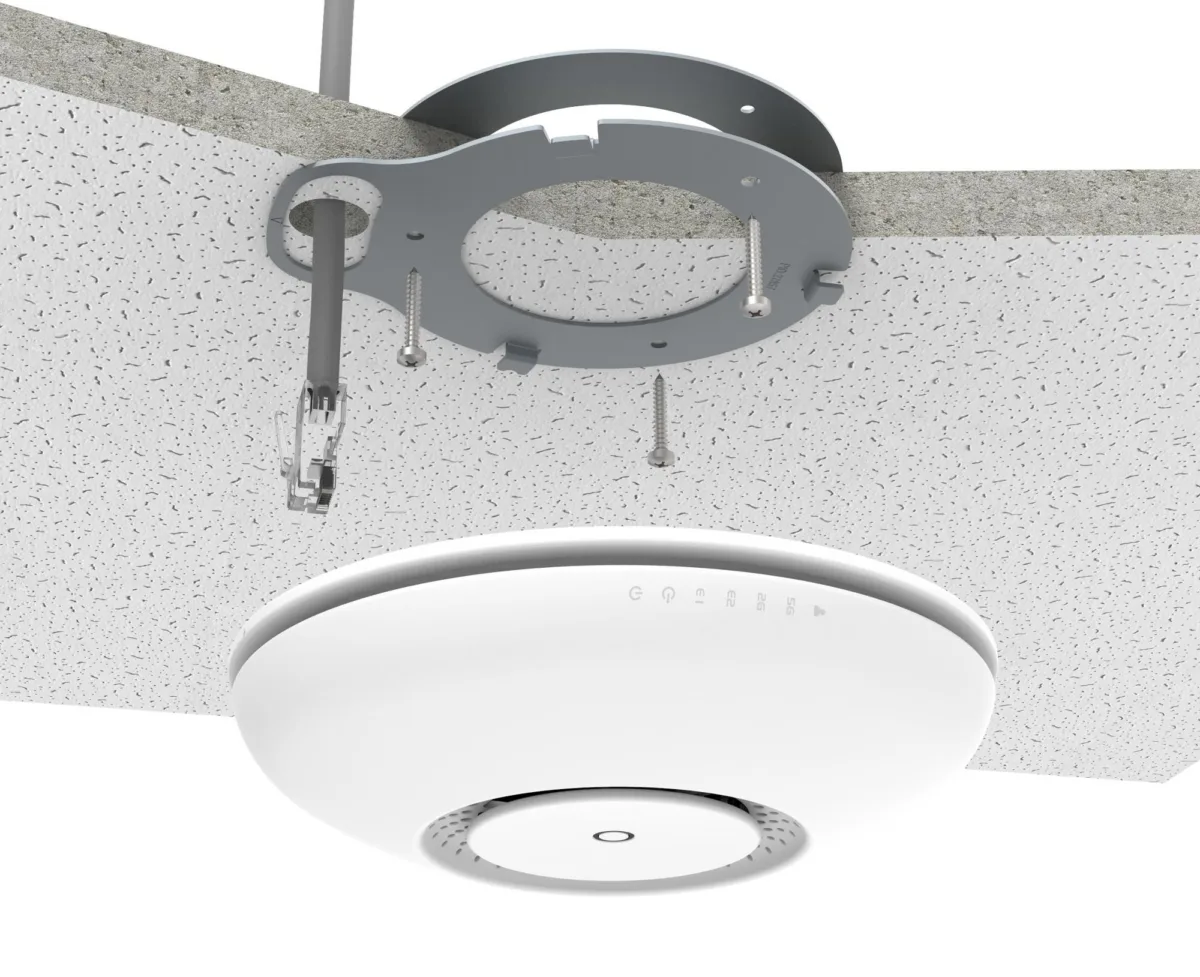

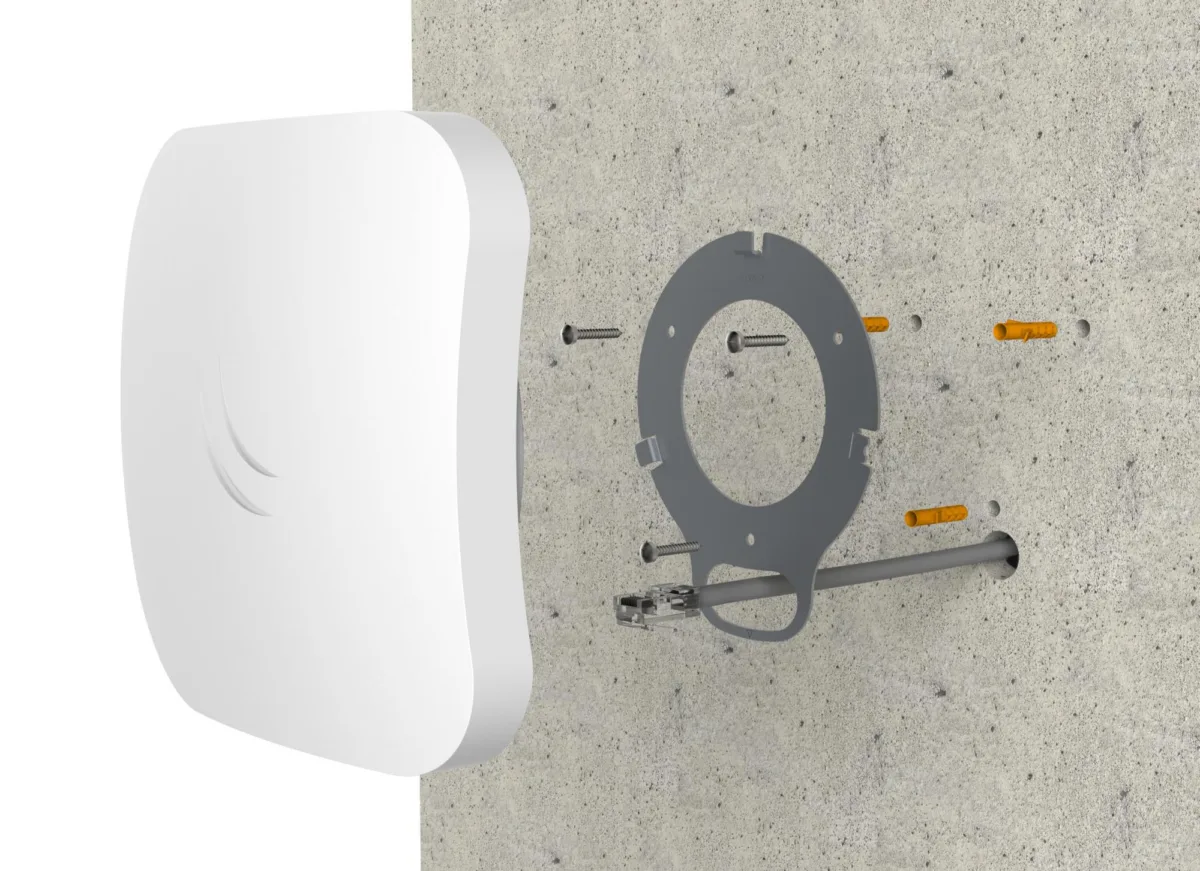

PlacementCeiling, Wall

Features

2.4 GHzYes
5 GHzYes
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.412 - 2.484, 5.15 - 5.875 GHz
Maximum data transfer rate867 Mbit/s
Maximum data transfer rate (2.4 GHz)300 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Receiver sensitivity2.4GHz: 1MBit/s: -100 @ 26dBm Tx 11MBit/s: -94 @ 26dBm Tx 6MBit/s: -96 @ 26dBm Tx 54MBit/s: -78 @ 23dBm Tx MCS0: -96 @ 26dBm Tx MCS7: -73 @ 22dBm Tx 5GHz: 6MBit/s: -96 @ 26dBm Tx 54MBit/s: -80 @ 21dBm Tx MCS0: -96 @ 26dBm Tx MCS7: -75 @ 20dBm Tx MCS9: -7

Logistics data

Harmonized System (HS) code85176990

Operational conditions

Operating temperature (T-T)-40 - 50 °C

Packaging content

AC adapter includedYes
Mounting kitYes

Performance

Flash memory16 MB
Internal memory128 MB
Operating system installedRouterOS

Ports & interfaces

Ethernet LAN (RJ-45) ports2

Power

DC voltage range17 - 57 V
Output voltage57 V
Power consumption (max)13 W

Weight & dimensions

Depth30 mm
Height136 mm
Width136 mm
Garantii12 kuud
EAN4752224003416
Tootja koodRBCAPGI-5ACD2ND

Lisainfo

Kaal 0,718 kg
Mõõtmed 6 × 18 × 26,5 cm
PoE

Active PoE, Passive PoE, Yes

Varv

White

Cpu

716 MHz, IPQ4018, Yes

Mudel

cAP ac // RBcAPGi-5acD2nD
