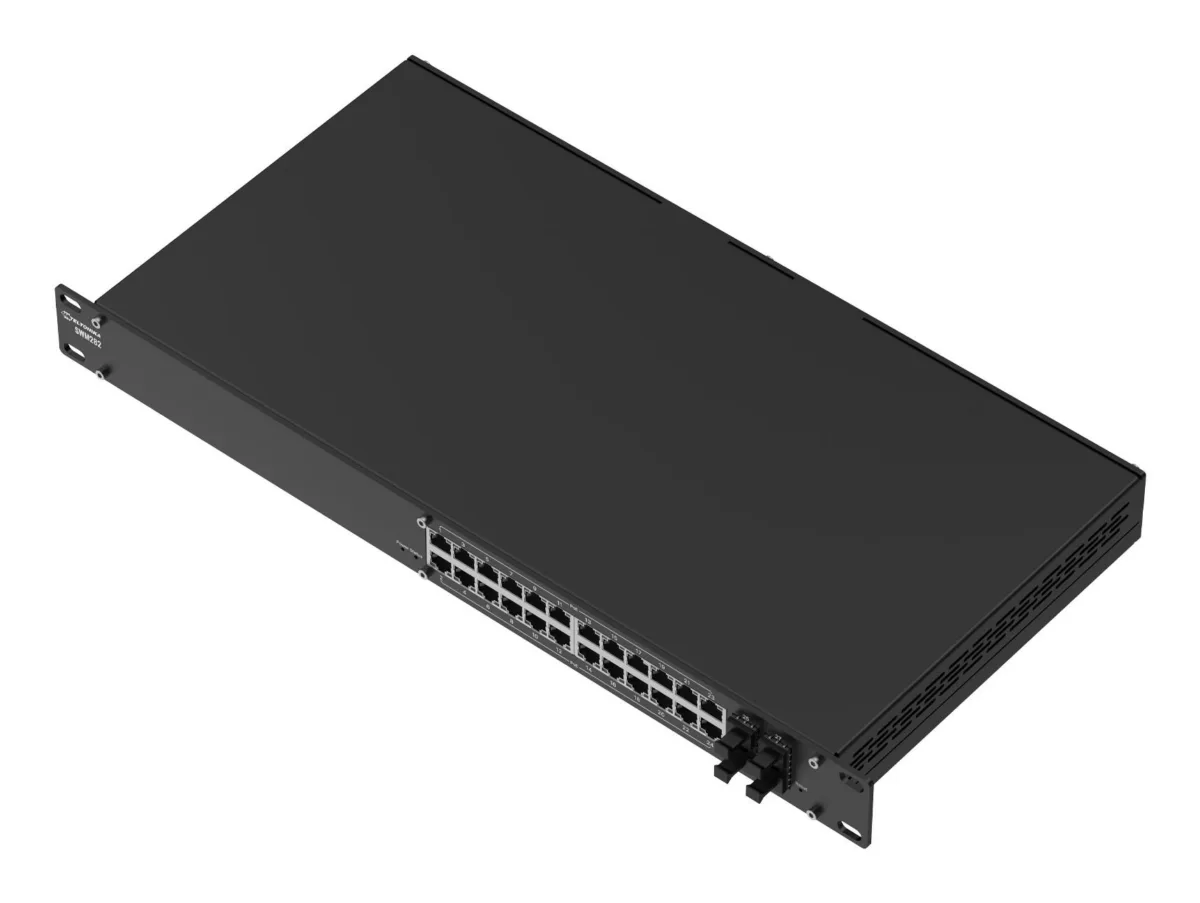

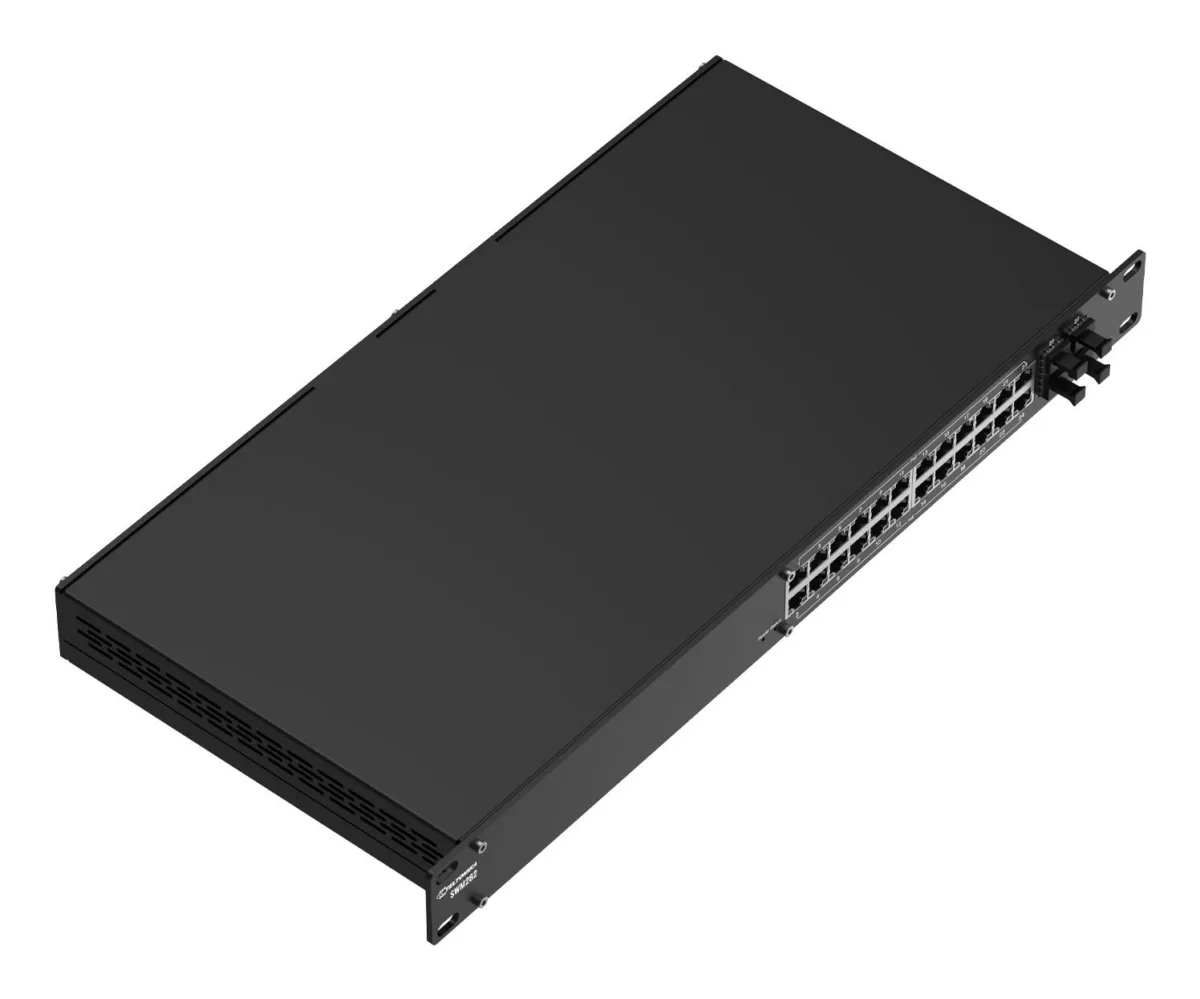

Teltonika Switch type Managed Switch layer L2 SWM282
Teltonika Switch type Managed Switch layer L2 SWM282
Teltonika Switch type Managed Switch layer L2 SWM282
Teltonika Switch type Managed Switch layer L2 SWM282
Teltonika Switch type Managed Switch layer L2 SWM282

Teltonika Switch type Managed Switch layer L2 — lüliti

428,31 €

Model: SWM282 · Packet buffer memory: 0.512 MB · MAC address table: 8000 entries

Laos — kohal 1-5 tööpäeva

13 laos

Maksa kolmes võrdses osas 3 x 142.77€

Tootekood: 1453233 Kategooria:

Kirjeldus

Teltonika SWM282. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1x, IEEE 802.3af, IEEE…. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

The SWM282 is a high-capacity L2 managed switch with enhanced L3 capabilities, built to simplify network control while delivering power and connectivity at scale. It features 24 PoE+ ports, supplying up to 30 W per port with a total power budget of 300 W, and 4 SFP ports. With support for PROFINET and other industrial protocols, this 24-port switch is an ideal choice for enterprise networks and IIoT solutions.

Üldine

NameNET SWITCH 24PORT 10/100/1000/POE+ 4SFP SWM282 TELTONIKA
ModelSWM282

Certificates

Compliance certificatesCE, UKCA, CB, RCM, Federal Communications Commission (FCC), Industry Canada (IC)

Data transmission

Packet buffer memory0.512 MB
Static routeYes
MAC address table8000 entries
Forwarding rate83.33 Mpps

Design

International Protection (IP) codeIP30
Reset buttonYes
Housing materialAluminium
Rack mountingYes

Management features

Traffic shapingYes
Web-based managementYes
Quality of Service (QoS) supportYes
Switch layerL2+
Switch typeManaged

Network

VLAN supportYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000 Mbit/s
Rate limitingYes
Port mirroringYes
10G supportNo
Networking standardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1Q

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C

Packaging content

Quick start guideYes

Packaging data

Package typeBox

Performance

Firmware upgradeableYes
Flash memory16 MB
Internal memory128 MB
Memory typeDDR3-SDRAM

Ports & interfaces

Power connectorAC-in jack
SFP module slots quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity24

Power

Power consumption (max)330 W
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Power supply includedNo
Power sourceAC

Security

Authentication typeRADIUS, TACACS+
Loop protectionYes
MAC address filteringYes
Queue scheduling algorithmsSP, WFQ, Weighted Round Robin (WRR)
DHCP featuresDHCP server, DHCP client, DHCPv6 client

Weight & dimensions

Weight2.29 kg
Height44 mm
Depth234 mm
Width483 mm
Garantii24 kuud
EAN4779051846276
Tootja koodSWM282

Lisainfo

Kaal 2,58 kg
Mõõtmed 52 × 33 × 10 cm
Storage

56 Gbit/s
Mälu

10000, Yes
Varv

Black
Cpu

500 MHz, Yes
PoE

24, 30 W, 300 W, Active PoE, PoE+, Alternative A, Yes
Mudel

SWM282000200
