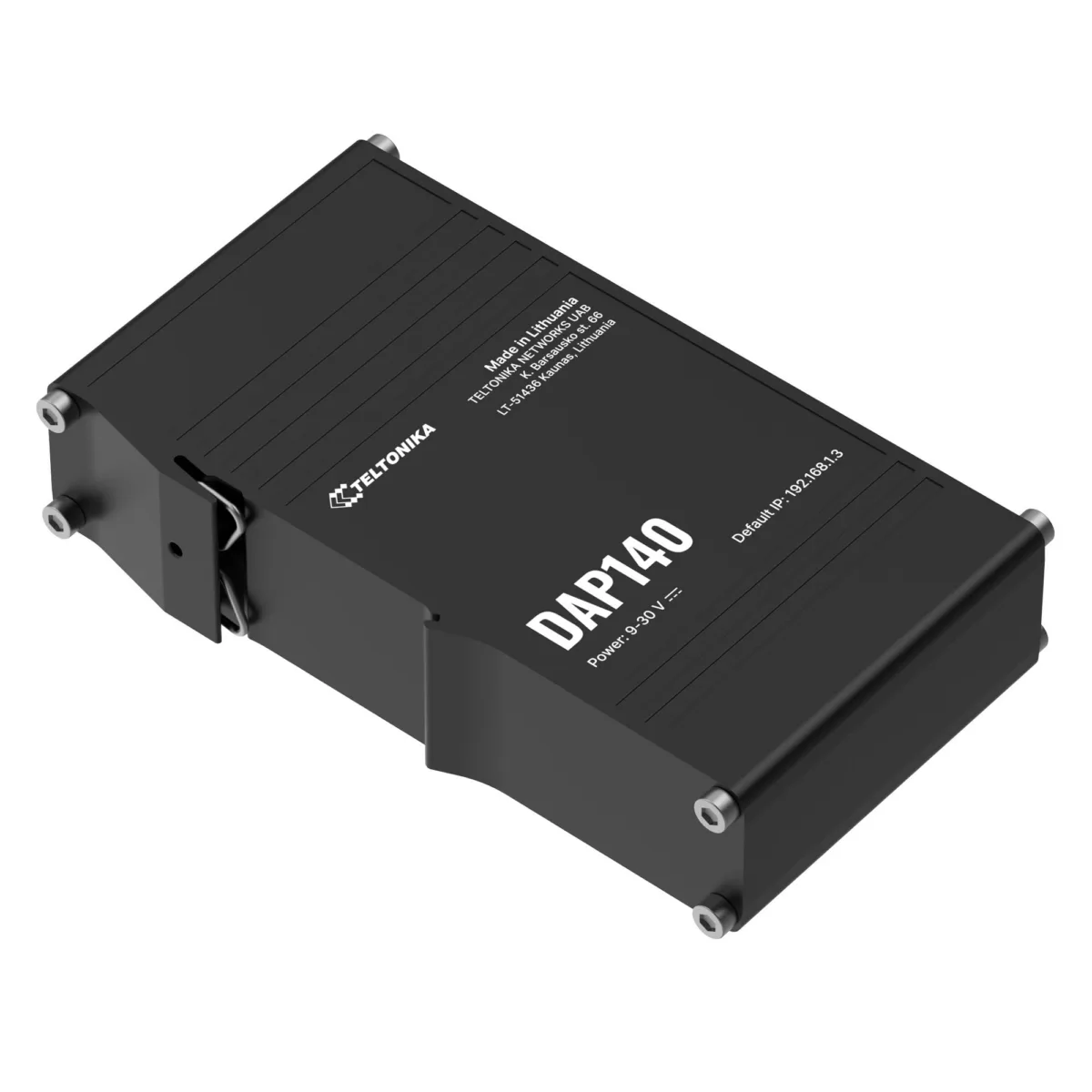

Teltonika tugijaam DAP140

Name: Teltonika tugijaam DAP140
Brand: TELTONIKA
SKU: 1453230
Price: 79.79 EUR
Availability: InStock

79,79 €

International Protection (IP) code: IP30 · Cabling technology: 10/100Base-T(X) · Ethernet LAN data rates: 10,100,1000 Mbit/s

Laos — kohal 1-5 tööpäeva

18 laos

Tootekood: 1453230 Kategooria: WiFi-tugijaamad

Kirjeldus

Teltonika DAP140. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: OWE, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPA3-EAP, WPA3-SAE. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: Black

The DAP140 is a Teltonika industrial wireless access point with passive PoE-in, designed to enhance Wi-Fi coverage and performance in industrial environments. Featuring Wi-Fi 4 with Wi-Fi mesh and Fast Roaming, as well as dual RJ45 ports and support of up to 50 simultaneous connections, this wireless access point is integral in maintaining reliable connectivity. An integrated DIN rail bracket, 3-pin power connector, and industrial-grade aluminium housing make the DAP140 the ideal access point for industrial applications.

Seamless Wi-Fi 4 with Wi-Fi mesh & Fast Roaming
2 x 10/100 RJ45
1 x 3-pin power connector tailored for industrial use
Easy mounting for plug-and-play deployment

Üldine

Name	WRL ACCESS POINT/DAP140 TELTONIKA

Antenna

Antenna connector type	RP-SMA
Antenna type	External

Design

LED indicators	Power
Reset button	Yes
International Protection (IP) code	IP30
Housing material	Aluminium
Placement	Shelf, Wall

Features

Wireless meshing	Yes
Fast roaming	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11v, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate	300 Mbit/s
5 GHz	No
6 GHz	No
2.4 GHz	Yes

Management features

Web-based management	Yes

Operational conditions

Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	10 - 90%

Packaging content

Quantity per pack	1 pc(s)

Performance

Operating system installed	RutOS
Flash memory	128 MB
Internal memory	16 MB

Ports & interfaces

WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	2

Protocols

IPv4 & IPv6 features	Dual stack IPv4/IPv6
Supported network protocols	TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake On Lan (WOL)
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Security

VPN support	OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
MAC address filtering	Yes
Security algorithms	OWE, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPA3-EAP, WPA3-SAE

Weight & dimensions

Weight	150 g
Height	25 mm
Depth	68.6 mm
Width	113.1 mm

Garantii	24 kuud
EAN	4779051843251
Tootja kood	DAP140

Lisainfo

Kaal	0,259 kg
Mõõtmed	18 × 15 × 3,5 cm
Liides	No, Yes
PoE	Passive PoE, Yes
Varv	Black
Cpu	580 MHz, Yes
Storage	-50 – 75%, 10 – 90 °C
Mudel	DAP140000000
