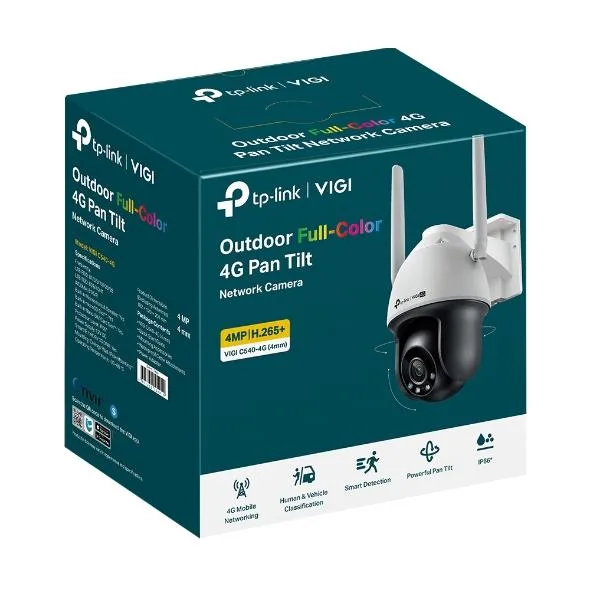

TP-Link juhtmevaba pöörav kaamera 4MP VIGIC540

413,83 €

Bit rate range: 64 – 64 Kbit/s · Signal-to-Noise Ratio (SNR): 52 dB · Sample rate: 8 kHz

Laos — kohal 1-5 tööpäeva

1 laos

Maksa kolmes võrdses osas 3 x 137.94€

Tootekood: 1420740 Kategooria:

Kirjeldus

TP-Link VIGI C540-4G. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 80°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 94°. Sensor type: CMOS, Optical sensor size: 25.4 / 3.06 mm (1 / 3.06″). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m

Clarity and Colors, All in One
Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture
lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.

Network Anywhere You Need It
No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.

Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what’s happening and take action without wasting time on irrelevant footage.

Smart Detection for Efficient Monitoring
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

Active Defense
Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.

Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.

Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

  • 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details
  • 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness
  • 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available
  • 360° Monitoring: Cover every corner and eliminate blind spots
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
  • Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly
  • Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance
  • Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client
  • Onboard Storage: Support on-board storage up to 256 GB (SD card slot)

Üldine

NameWRL CAMERA 4MP PAN/TILT/VIGI C540-4G(4MM) TP-LINK

Audio

Bit rate range64 - 64 Kbit/s
Built-in microphoneYes
Signal-to-Noise Ratio (SNR)52 dB
Sample rate8 kHz
Built-in speaker(s)Yes

Camera

Number of Privacy masking areas4
Camera shutter speed1/3 - 1/10000 s
Pan speed44 °/sec
Pan range0 - 348°
Tilt speed44 °/sec
Tilt angle range0 - 120°
Lens viewing angle, diagonal94°
Lens viewing angle, vertical43°
Lens viewing angle, horizontal80°
Camera tilt controlYes
Camera pan controlYes

Design

International Protection (IP) codeIP66
Housing materialPlastic
Mounting typeCeiling/wall

Features

Basic eventMotion Detection, Camera Tampering Detection, Exception

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3.06 mm (1 / 3.06")

Lens system

Identify distance8 m
Maximum aperture number1.6
Minimum aperture number1.6
Lens diameter4 mm
Recognize distance16 m
Observe distance33 m
Detect distance80 m
Number of lenses1
Zoom capabilityYes

Management features

Behavior analysisIntrusion detection, Line crossing detection
Reset buttonYes

Network

Live viewYes
3G standardsWCDMA
4G standardLTE-TDD & LTE-FDD
SIM card slotYes
SIM card typeNanoSIM
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Ethernet LANYes

Night vision

Number of illumination LEDs4
LED typeIR/White
Night vision distance30 m
Night visionYes

Operational conditions

Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-30 - 60 °C

Packaging content

Mounting kitYes
Number of cameras1

Performance

CertificationRCM, BSMI, VCCI, NTRA, KC
Luminous flux0.005 lm
Day/night modeYes
Infrared (IR) cut-off filterYes
Wide Dynamic Range (WDR)Yes
Auto patrol modeYes
Placement supportedIndoor & outdoor
Connectivity technologyWired
TypeIP security camera

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Power

DC output voltage12
Power source typeDC

Security

Digest authenticationYes
HTTPS encryptionYes
Intelligent Video Surveillance (IVS) system featuresHuman detection
IP address filteringYes
MirrorYes
Password protectionYes

Storage

Maximum memory card size256 GB
Compatible memory cardsMicroSD (TransFlash)
Card reader integratedYes
Built-in HDDNo

Sustainability

Compliance certificatesCE, RoHS

Video

3D positioningYes
Bit rate256 Kbps - 4 Mbps
Bit rate controlConstant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Image quality adjustmentBrightness, Contrast, Mirror, Saturation, Sharpness
Privacy maskingYes
Noise reduction technology3D noise reduction
Noise reductionYes
Video streamingYes
Video compression formatsH.264, H.264+, H.265, H.265+
Total megapixels4 MP

Weight & dimensions

Weight690 g
Height201 mm
Depth182 mm
Width120 mm
Garantii24 kuud
EAN4895252504910
Tootja koodVIGIC540-4G(4MM)

Lisainfo

Kaal 1,21 kg
Mõõtmed 24 × 16 × 24,5 cm
Form

Turret

Varv

Black/White

Resolutsioon

2560 x 1440 pixels, 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440

Mälu

30 fps

Liides

Fast Ethernet

Kanaleid

3 channels

Storage

-40 – 60 °C, 0 – 95%

Mudel

C540-4G
