TP-Link PoE+ ports 8 — lüliti

136,15 €

Model: TL-SG1008MP · Paketi puhvermälu: 1.5 MB · Hiigelkaadrite: 16000

Laos — kohal 1-5 tööpäeva

2 laos

Maksa kolmes võrdses osas 3 x 45.38€

Tootekood: 1269405 Kategooria:

Kirjeldus

TP-Link TL-SG1008MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

What This Product Does

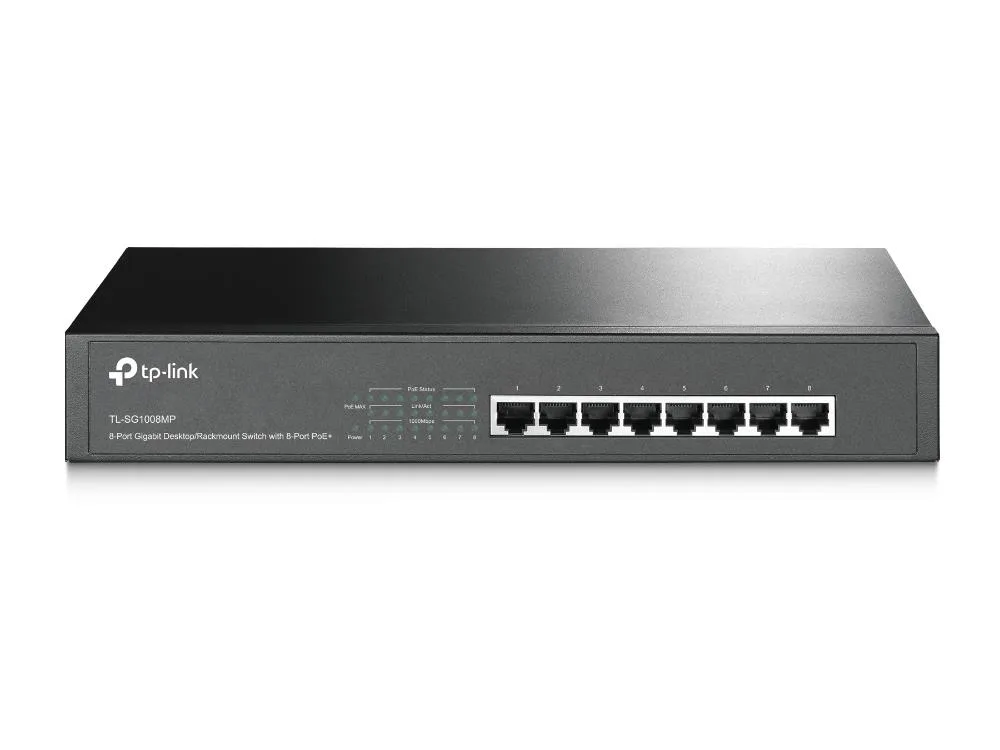

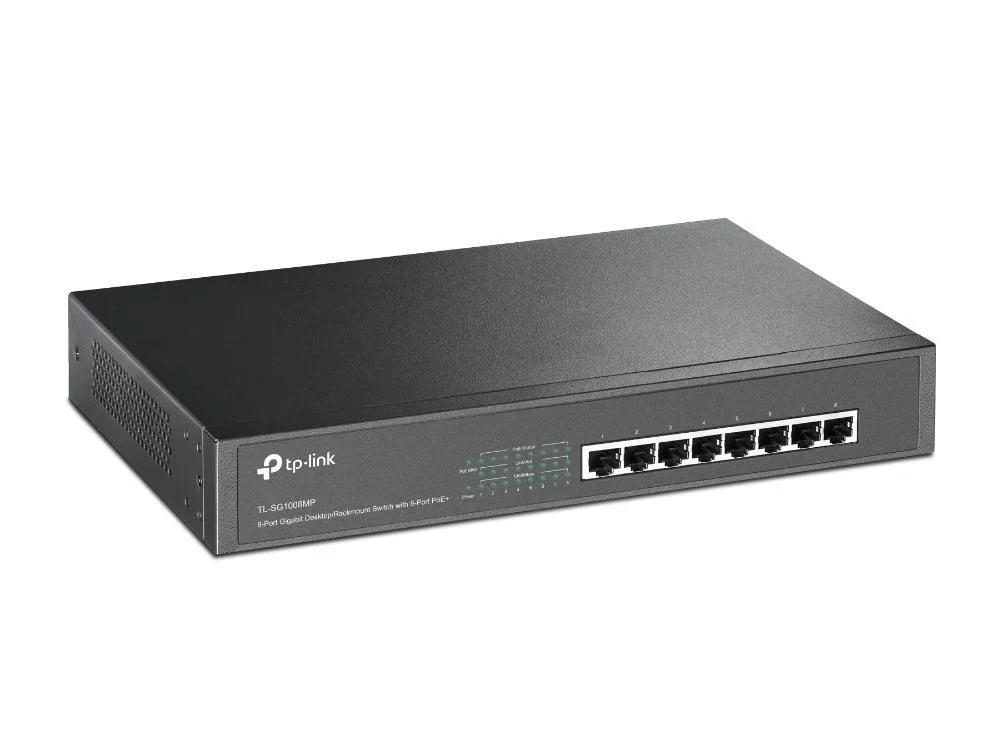

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.

Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.

Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

  • 8 10/100/1000Mbps RJ45 ports
  • Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
  • Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
  • Innovative energy-efficient technology reduces power consumption
  • Rack mountable with included rack mount bracket
  • Total PoE power budget up to 126W
  • Plug and play design, no configuration required

Üldine

NameNET SWITCH 8PORT 1000M/8P POE+ TL-SG1008MP TP-LINK
ModelTL-SG1008MP

Andmeedastus

Paketi puhvermälu1.5 MB
Hiigelkaadrite16000
Hiigelkaadrite tugiYes
Ladusta-ja-edastaYes
MAC-aadresside tabel4000 entries
Edastamise kiirus11.904 Mpps
Lülitusvõime16 Gbit/s

Disain

Ventilaatorite arv1 fan(s)
LED-indikaatoridYes
Korpuse materjalMetal
Toote värvBlack
Toote kuju1U
VirnastatavNo
PüstikmontaažYes

ELKO Verified Logistics Data

Ühiku kõrgus8 cm
Ühiku sügavus40.5 cm
Ühiku laius25 cm

Juhtimisfunktsioonid

Lüliti tüüpUnmanaged

Jätkusuutlikkus

Jätkusuutlikkuse järgimineYes

Kaal ja mõõtmed

Kõrgus44 mm
Sügavus180 mm
Laius294 mm

Logistika andmed

Harmonized System (HS) kood85176990

Pakendi andmed

Pakendi kaal2.48 kg
Pakendi kõrgus80 mm
Pakendi sügavus400 mm
Pakendi laius250 mm
Pakendi tüüpBox

Pakendi sisu

KasutusjuhendYes
Püstiku paigaldamise komplektYes
Kaablid kaasa arvatudAC

Pesad & liidesed

Gigabitise Etherneti (vask) portide arv8
RJ-45 Etherneti ühenduse pesade tüüpGigabit Ethernet (10/100/1000)
RJ-45 Etherneti ühenduse pesade arv8

Sertifikaadid

VastavussertifikaadidCE, Federal Communications Commission (FCC), RoHS

Toimimine

Kaabli maksimaalne pikkus100 m

Töötingimused

Soojuse hajumine592.15 BTU/h
Suhteline õhuniiskus (H-H) hoiustamisel5 - 90%
Suhteline õhuniiskus kasutamisel (H-H)10 - 90%
Hoiustamistemperatuur (T-T)-40 - 70 °C
Kasutamistemperatuur (T-T)0 - 40 °C

Võimsus

Elektritarbimine (max)173.65 W
AC-sisendsagedus50/60 Hz
AC-sisendpinge100 - 240 V
Kaasas toiteplokkYes
ToiteallikasAC/PoE

Võrgustumine

Auto MDI/MDI-XYes
Automaatne ühildumineYes
Automaatse MAC-aadressi aegumise tugiYes
Automaatse MAC-aadressi tuvastamise tugiYes
Voo reguleerimise tugiYes
PooldupleksYes
TäisdupleksYes
Toetatud kaablitüübidCat3, Cat4, Cat5, Cat5e
Etherneti vaskkaablite tehnoloogia10BASE-T, 100BASE-TX, 1000BASE-T
10G-tugiNo
VõrgustandardidIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Garantii60 kuud
EAN6935364086770
Tootja koodTL-SG1008MP

Lisainfo

Kaal 2,23 kg
Mõõtmed 40,5 × 25 × 8 cm
PoE

153 W, 8, Yes

Mudel

TL-SG1008MP
