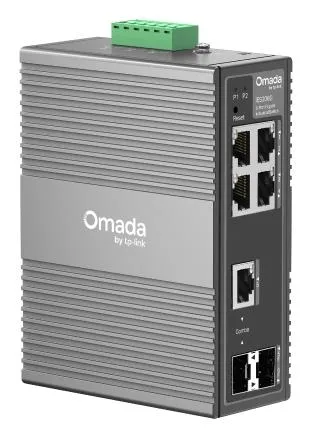

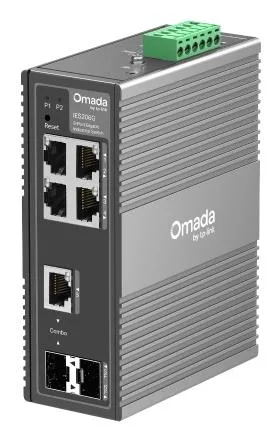

TP-Link Switch type Managed IES206G — lüliti

207,56 €

Model: IES206G · Forwarding rate: 8.93 Mpps · MAC address table: 8000 entries

Laos — kohal 1-5 tööpäeva

1 laos

Maksa kolmes võrdses osas 3 x 69.19€

Tootekood: 1445891 Kategooria:

Kirjeldus

TP-Link Omada IES206G. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 – 60 V. Wall mountable

  • 6× Gigabit Ports (4× RJ45, 1× Combo RJ45/SFP, 1×SFP)
  • Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
  • Abundant Features: VLAN, QoS, and STP/RSTP
  • Centralized Cloud Management via the Web or Omada App†
  • Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

Üldine

ModelIES206G

Certificates

CertificationFCC, CE, RoHS

Data transmission

Forwarding rate8.93 Mpps
MAC address table8000 entries
Store-and-forwardYes

Design

DIN rail mountingYes
Wall mountableYes

Management features

Cloud-managedYes
Quality of Service (QoS) supportYes
Switch typeManaged
Web-based managementYes

Multicast features

Multicast supportYes

Network

10G supportNo
Auto MDI/MDI-XYes
Auto-negotiationYes
Flow control supportYes
Link aggregationYes
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Port mirroringYes
Spanning tree protocolYes

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)-40 - 75 °C

Performance

FanlessYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity1
SFP module slots quantity1

Power

DC input voltage9 - 60 V
Power sourceDC
Power supply includedYes
Redundant power supply (RPS) supportYes

Security

DHCP featuresDHCP client
IGMP snoopingYes

Weight & dimensions

Depth95 mm
Height45 mm
Width129 mm
Garantii60 kuud
EAN1210002602075
Tootja koodIES206G

Lisainfo

Kaal 0,739 kg
Mõõtmed 16,5 × 17 × 8 cm
Mälu

15000, Yes
Storage

-40 – 85 °C, 12 Gbit/s, 5 – 95%
Varv

Black
PoE

No
