Teltonika TSW212 — lüliti

Name: Teltonika TSW212 — lüliti
Brand: TELTONIKA
SKU: 1436742
Price: 152.01 EUR
Availability: InStock

152,01 €

Model: TSW212 · MAC address table: 8000 entries · International Protection (IP) code: IP30

Laos — kohal 1-5 tööpäeva

9 laos

Tootekood: 1436742 Kategooria: Võrgulülitid

Kirjeldus

Teltonika TSW212. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az

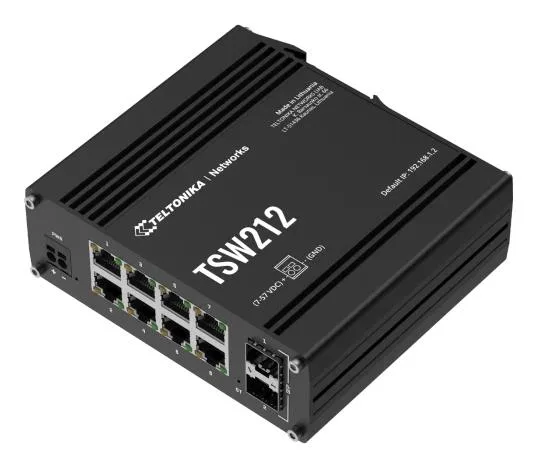

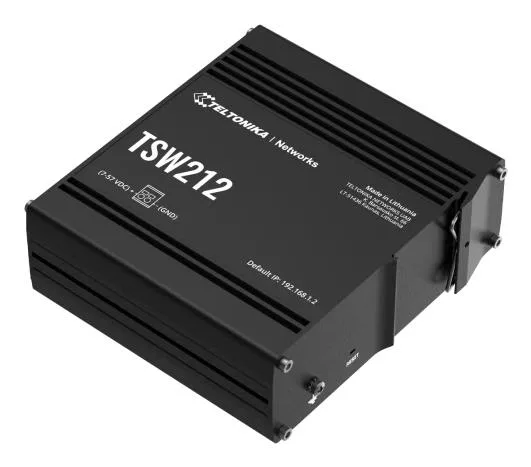

MANAGED ETHERNET SWITCH

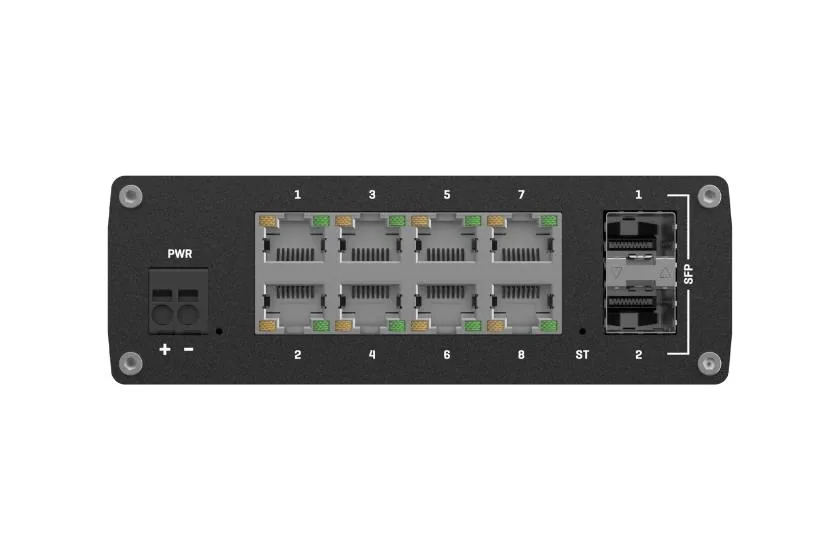

TSW212 is an L2 managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing. This switch supports protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication.

Üldine

Model	TSW212

Data transmission

MAC address table	8000 entries

Design

International Protection (IP) code	IP30
LED indicators	LAN, Power
Reset button	Yes

Management features

Quality of Service (QoS) support	Yes
Switch layer	L2
Switch type	Managed

Network

10G support	No
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
IP routing	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az
Port mirroring	Yes
VLAN support	Yes

Operational conditions

Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-40 - 75 °C

Performance

Flash memory	16 MB
Internal memory	128 MB
Memory type	DDR3-SDRAM

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2

Power

Power consumption (max)	6 W
Power source	DC
Power supply included	No

Security

DHCP features	DHCP client, DHCP server
Queue scheduling algorithms	WFQ, WFQ+SP, Weighted Round Robin (WRR)
Security algorithms	SNMPv2, SNMPv3

Weight & dimensions

Depth	122.2 mm
Height	44.2 mm
Weight	615 g
Width	132 mm

Garantii	24 kuud
EAN	4779051841370
Tootja kood	TSW212

Lisainfo

Kaal	0,675 kg
Mõõtmed	14 × 14 × 5 cm
Mälu	10000, Yes
Bränd	TELTONIKA
Storage	20 Gbit/s
Varv	Black
PoE	No
Mudel	TSW212000000
