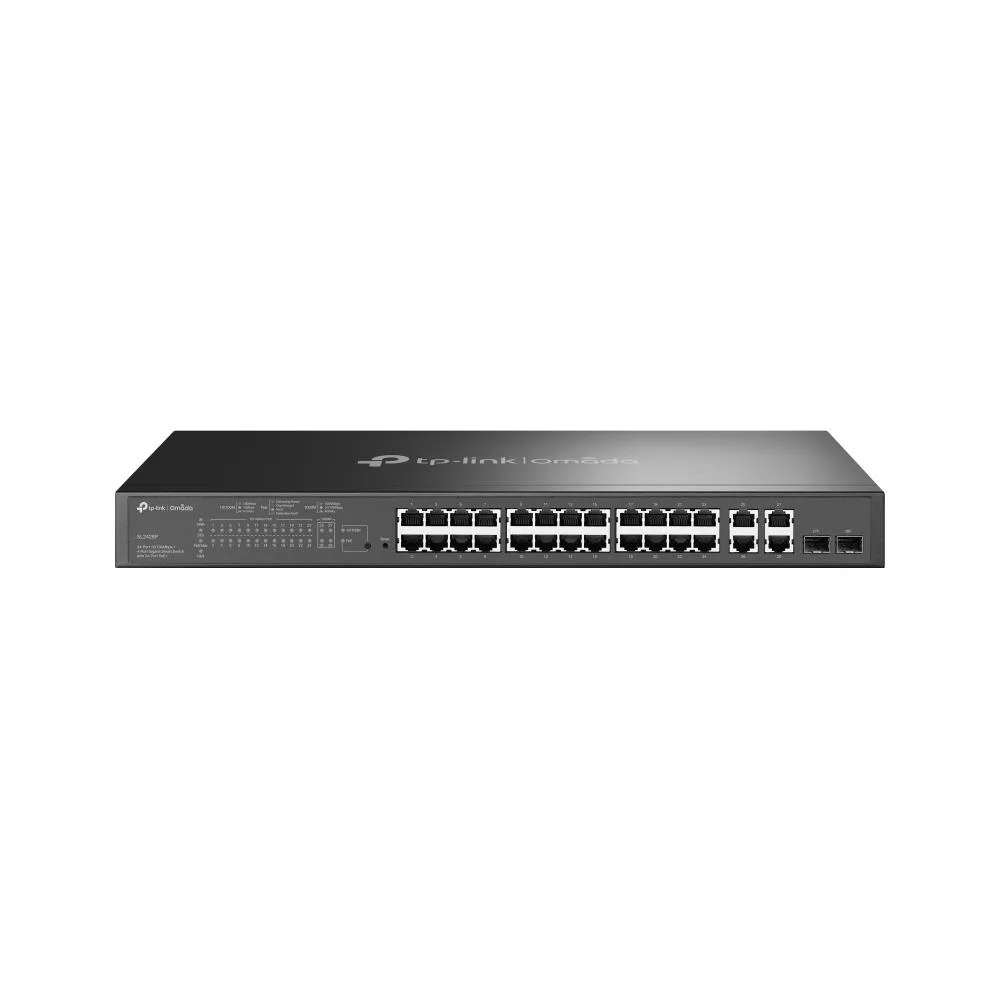

TP-Link SL2428P Rack PoE+ ports 24 250 Watts

TP-Link SL2428P Rack PoE+ ports 24 250 Watts — lüliti

332,08 €

MAC address table: 8000 entries · Number of queues: 4 · Packet buffer memory: 4.1 MB

Laos — kohal 1-5 tööpäeva

1 laos

Maksa kolmes võrdses osas 3 x 110.69€

Tootekood: 1417694 Kategooria:

Kirjeldus

TP-Link Omada SL2428P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 12.8 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE…. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

  • 24× 10/100 Mbps 802.3af/at PoE+ ports with up to 30 W PoE output per port
  • 2× Gigabit RJ45 ports and 2× Combo Gigabit RJ45/SFP ports
  • 250 W total PoE budget
  • Centralized cloud management via the web or the Omada app
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Durable metal casing and rackmountable design

Certificates

CertificationCE, FCC, RoHS

Data transmission

MAC address table8000 entries
Number of queues4
Packet buffer memory4.1 MB
Throughput9.5 Mpps

Design

Number of fans2 fan(s)
Rack mountingYes

Management features

ARP inspectionYes
Configuring Location Settings (CLI)Yes
Quality of Service (QoS) supportYes
Switch layerL2
Switch typeManaged
System event logYes
Web-based managementYes

Multicast features

Multicast supportYes

Network

10G supportNo
Auto MDI/MDI-XYes
Broadcast storm controlYes
Cable types supportedCat5, Cat5e
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Flow control supportYes
Link aggregationYes
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Number of VLANs512
Port mirroringYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes

Operational conditions

Heat dissipation995.09 BTU/h
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C

Packaging content

Cables includedAC
Quick start guideYes
Rack mount kitYes

Performance

Compatible operating systemsMicrosoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Firmware upgradeableYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Combo SFP ports quantity2
Fast Ethernet (copper) ports quantity24
Gigabit Ethernet (copper) ports quantity4

Power

AC input frequency50/60 Hz
AC input voltage100 - 240 V
Power consumption (max)291.6 W
Power sourceAC

Protocols

Management protocolsSNMP v1/v2c/v3, RMON, SNTP, TFTP

Security

Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithmsSNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
SSH/SSL supportYes

Weight & dimensions

Depth180 mm
Height44 mm
Width440 mm
Garantii24 kuud
EAN6935364030612
Tootja koodSL2428P

Lisainfo

Kaal 3,2 kg
Mõõtmed 53,5 × 25,2 × 8 cm
Mälu

9000, Yes
Bränd

Storage

-40 – 70 °C, 12.8 Gbit/s, 5 – 90%
Form

1U
Varv

Black
PoE

24, 250 W, Yes
Mudel

SL2428P
