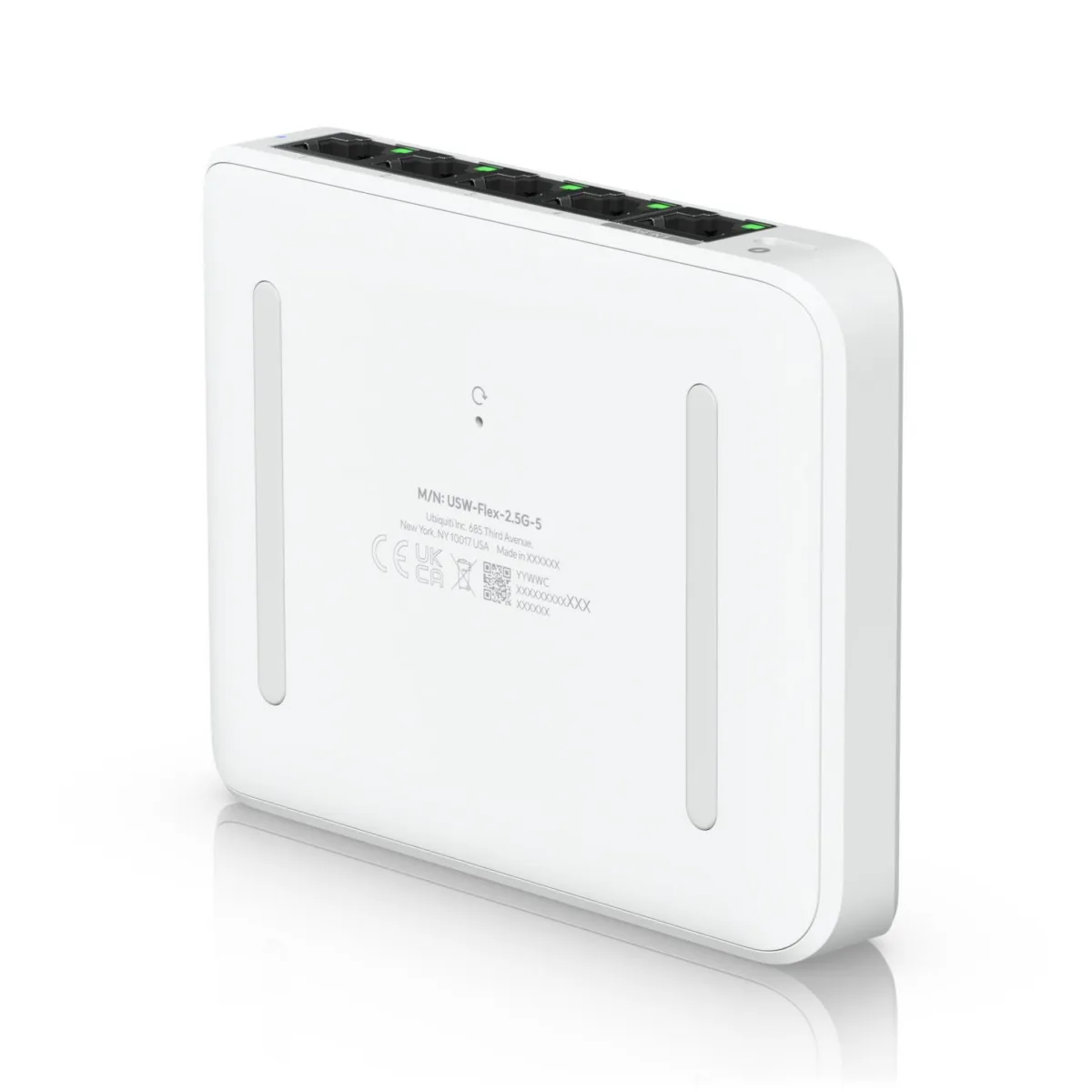

Ubiquiti Flex Mini 2.5G Type L2 — lüliti

69,58 €

Model: USW-FLEX-2.5G-5 · Forwarding rate: 18.6 Mpps · Throughput: 12.5 Gbit/s

Otsas — tarneaeg täpsustamisel, küsi pakkumist

Laost otsas

Tootekood: 1425601 Kategooria:

Kirjeldus

Ubiquiti UniFi Flex Mini 2.5G. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. Switching capacity: 25 Gbit/s. DC input voltage: 5 V. Power connector: USB. Power over Ethernet (PoE). Form factor: Desktop

Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.

  • Optional powering with included 5V, 1A USB-C adapter
  • Ethernet In-Band
  • Certifications CE, FCC, IC

Üldine

ModelUSW-FLEX-2.5G-5

Certificates

CertificationCE, FCC, IC
Compliance certificatesCE, Federal Communications Commission (FCC), Industry Canada (IC)

Data transmission

Forwarding rate18.6 Mpps
Throughput12.5 Gbit/s

Design

Housing materialPolycarbonate (PC)
LED indicatorsActivity, Power, Progress
Reset buttonYes

Management features

Switch typeManaged

Multicast features

Multicast supportYes

Network

10G supportNo
Broadcast storm controlYes
Copper ethernet cabling technology2.5GBASE-T
Flow control supportYes
Port mirroringYes
Rate limitingYes

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-20 - 45 °C

Other features

Networking featuresSTP / RSTP with priorities and port-level disable, Egress rate limit

Packaging data

AC adapter includedYes

Performance

Minimum system requirementsUniFi Network Version 8.4.62 and later

Ports & interfaces

2.5G Ethernet (copper) ports quantity5
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
Power connectorUSB
USB Type-C ports quantity1

Power

DC input voltage5 V
Input current1 A
Power consumption (max)5 W
Power plug typeType A
Power sourceAC/DC/PoE
Power supply includedYes

Weight & dimensions

Depth90 mm
Height21.2 mm
Weight206 g
Width117.1 mm
Garantii12 kuud
EAN810084696040
Tootja koodUSW-FLEX-2.5G-5

Lisainfo

Kaal 0,456 kg
Mõõtmed 12,2 × 10,1 × 8 cm
Mälu

Yes
Bränd

Storage

25 Gbit/s
Form

Desktop
Varv

White
PoE

57 V, 6.4 W, Yes
Mudel

Flex Mini 2.5G
