MikroTik 10G support Yes CSS610-8P-2S+OUT — lüliti

224,06 €

Total Power over Ethernet (PoE) budget 120 W

Laos — kohal 1-5 tööpäeva

14 laos

Maksa kolmes võrdses osas 3 x 74.69€

Tootekood: 1454383 Kategooria:

Kirjeldus

Mikrotik netPower Lite 8P. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 24 – 57 V. Power connector: Terminal block (2-pin). Power over Ethernet (PoE)

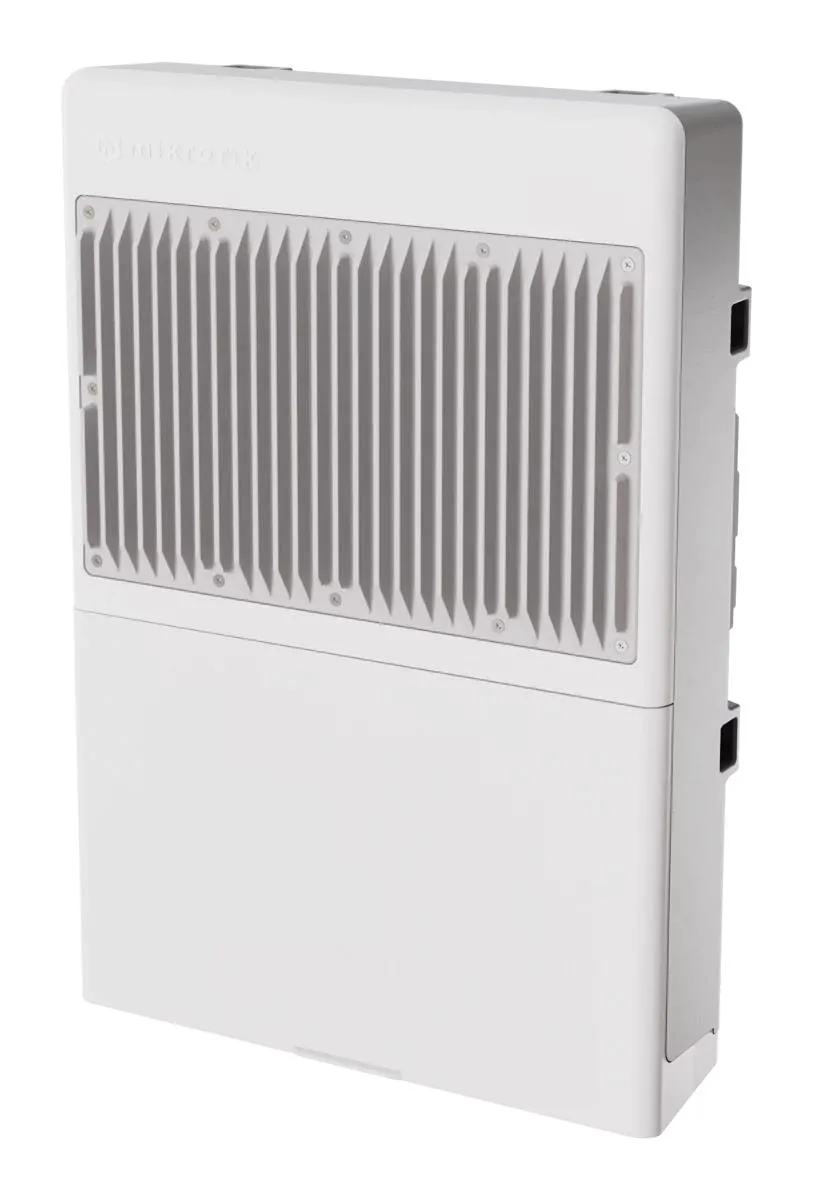

Mikrotik netPower Lite 8P (CSS610-8P-2S+OUT)

With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.

The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.

  • 8× Gigabit Ethernet
  • 802.3af/at PoE-Out
  • 2× 10G SFP+ uplinks
  • 24–57 V DC input
  • Built-in smart battery charger
  • 120 W total PoE-Out
  • Integrated UPS switchover
  • Temperature sensor included

Üldine

NameNET SWITCH 8PORT 1000M 2SFP+/CSS610-8P-2S+OUT MIKROTIK
ModelCSS610-8P-2S+OUT

Disain

Rahvusvahelise kaitse (IP) koodIP54
LED-indikaatoridJah
Temperatuuri andurYes
Toote värvValge

ELKO Verified Logistics Data

Ühiku kõrgus9.5 cm
Ühiku sügavus40 cm
Ühiku laius24.5 cm

Kaal ja mõõtmed

Kõrgus71 mm
Sügavus212 mm
Laius304 mm

Pesad & liidesed

ToitepistmikTerminal block (2-pin)
SFP+ mooduli pesade arv2
Gigabitise Etherneti (vask) portide arv8
RJ-45 Etherneti ühenduse pesade tüüpGigabit Ethernet (10/100/1000)
RJ-45 Etherneti ühenduse pesade arv8

Sertifikaadid

VastavussertifikaadidCE/EAC/RoHS

Toimimine

Keskmine tõrkeintervall (MTBF)200000 h
Välkmälu0.064 MB
Mälu tüüpFlash
Installitud operatsioonisüsteemSwOS

Töötingimused

Kasutamistemperatuur (T-T)-40 - 70 °C

Võimsus

Elektritarbimine (max)208 W
Alalisvoolu sisendpinge24 - 57 V

Võrgustumine

10G-tugiYes
VõrgustandardidIEEE 802.3af/IEEE 802.3at
Garantii12 kuud
EAN4752224006936
Tootja koodCSS610-8P-2S+OUT

Lisainfo

Kaal 3,08 kg
Mõõtmed 40 × 24,5 × 9,5 cm
PoE

120 W, 8, Yes

Mudel

Mikrotik netPower Lite 8P (CSS610-8P-2S+OUT)
